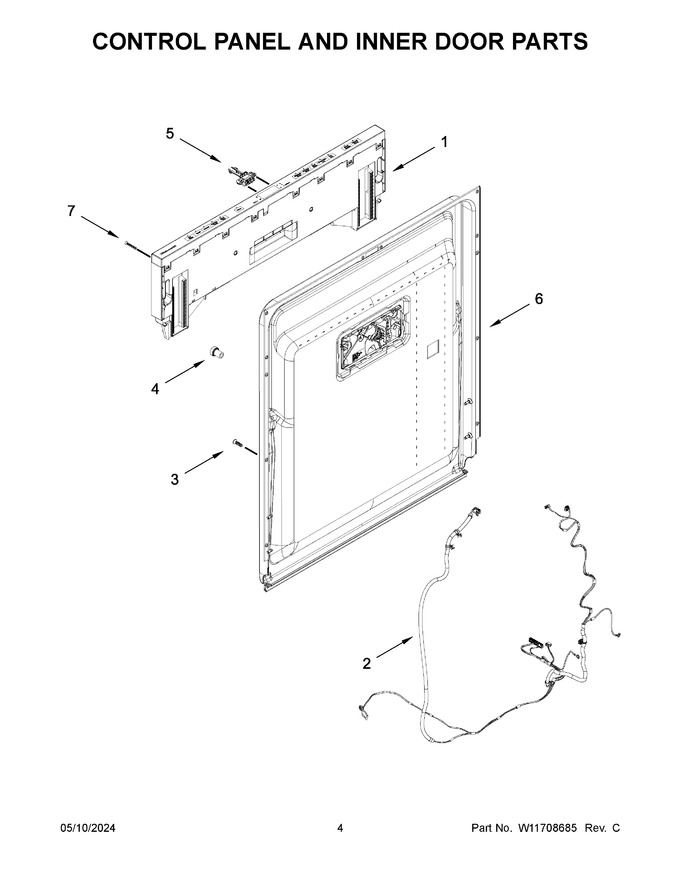

Control Panel And Inner Door Parts


Door And Panel Parts


Lower Rack Parts


Pump, Washarm And Motor Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11693759		Console Assembly (includes Insert) (black)   (Replaces: W11550042)			Immediately	$ 409.57
2	W11693820		Wiring Harness, Inner Door   (Replaces: W11608934)		Appelez-nous	-
3	W11729111		Screw   (Replaces: W10941960)				$ 13.24
4	W11699547		Bushing, Shouldered   (Replaces: W10944891)				$ 432.01
5	W11412299		Latch Assembly (includes Switch)   (Replaces: W11091934)			Immediately	$ 26.73
6	W11690648		Inner Door Assembly (includes Soap Dispenser)   (Replaces: W11684843)				$ 352.11
7	W11729110		Screw   (Replaces: W11381263)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
