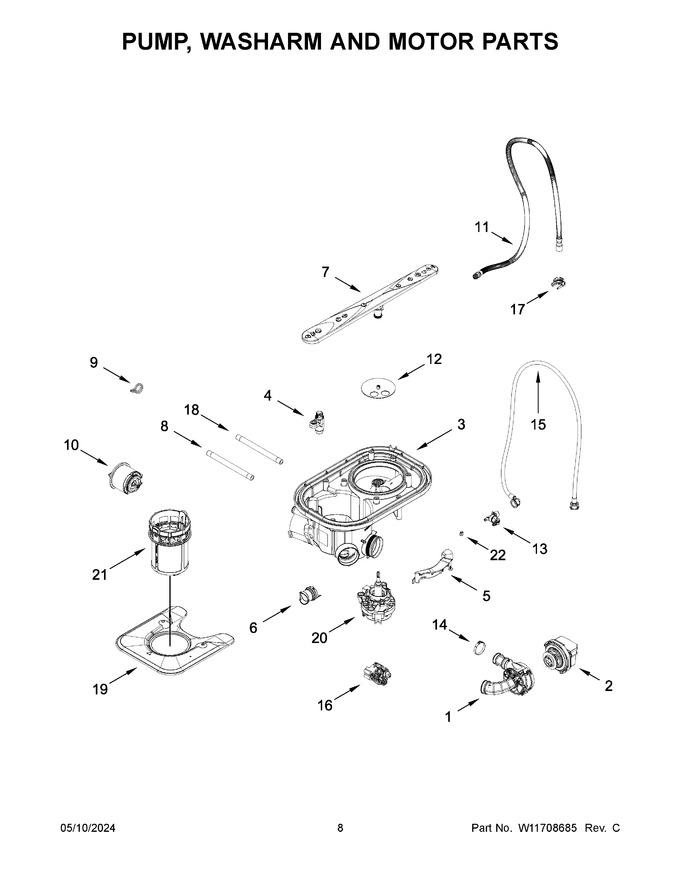

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11690626 |
|
Heater, Pump (Replaces: W11630727) |
|
|
Immediately |
$ 258.28 |
|
|
| 2 |
W11690628 |
|
Motor, Pump (Replaces: W11630725) |
|
|
Immediately |
$ 375.78 |
|
|
| 3 |
W11690640 |
|
Sump (includes Seal) (Replaces: W11560668) |
|
|
|
$ 225.50 |
|
|
| 4 |
W11690638 |
|
Drain Vent Assembly (Replaces: W11559823) |
|
|
|
$ 65.85 |
|
|
| 5 |
W11690639 |
|
Diffuser, Inlet (Replaces: W11560657) |
|
|
|
$ 24.51 |
|
|
| 6 |
W11693619 |
|
Check Valve, Drain (Replaces: W11560834) |
|
|
|
$ 17.52 |
|
|
| 7 |
W11699038 |
|
Wash Arm Assembly (Replaces: W11528063) |
|
|
|
$ 144.07 |
|
|
| 8 |
W11698605 |
|
Hose, Pump Inlet (Replaces: W11008962) |
|
|
|
$ 78.03 |
|
|
| 9 |
WP596669 |
 |
Clamp, Hose (Replaces: W10096851) |
|
|
Immediately |
$ 7.94 |
|
|
| 10 |
W11693603 |
|
Motor, Drain (Replaces: W11631981) |
|
|
Immediately |
$ 133.07 |
|
|
| 11 |
W11693602 |
|
Hose, Drain (Replaces: W11586395) |
|
|
|
$ 110.72 |
|
|
| 12 |
W11693604 |
|
Disc, Diverter (Replaces: W11175586) |
|
Appelez-nous
|
- |
|
|
|
| 13 |
W11693612 |
|
Fill Valve Assembly (Replaces: W11545826) |
|
|
|
$ 88.34 |
|
|
| 14 |
W10783615 |
|
Clamp, Hose (Replaces: W11122851) |
|
|
Immediately |
$ 17.58 |
|
|
| 15 |
W11690631 |
|
Hose, Inlet (Replaces: W11457583) |
|
|
|
$ 92.01 |
|
|
| 16 |
W11410464 |
|
Indicator, Optical Wash (Replaces: W11126174) |
|
|
Immediately |
$ 27.20 |
|
|
| 17 |
W11693621 |
|
Clip, Hose (Replaces: W11626817) |
|
Appelez-nous
|
- |
|
|
|
| 18 |
W11698516 |
|
Hose, Inlet (Replaces: W11008964) |
|
Appelez-nous
|
- |
|
|
|
| 19 |
W11698630 |
|
Grate (Replaces: W11445183) |
|
Appelez-nous
|
- |
|
|
|
| 20 |
W11693837 |
|
Diverter Valve Motor (Replaces: W11543924) |
|
|
Immediately |
$ 103.90 |
|
|
| 21 |
W11698610 |
|
Filter (Replaces: W11559846) |
|
Appelez-nous
|
- |
|
|
|
| 22 |
W11690844 |
|
Clamp, Hose (Replaces: W11015323) |
|
|
Immediately |
$ 9.77 |
|
|
