Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11698129 Dishrack, Lower   (Replaces: W11543671) Special Order $ 156.15

2 W11698127 Wheel & Transport Assembly   (Replaces: W11543733) Appelez-nous -
3 W11699037 Silverware Basket Assembly   (Replaces: W11629677) Appelez-nous -
4 W11698135 Utensil Basket (rear)   (Replaces: W11634637) Appelez-nous -
5 W11698132 Utensil Basket (front)   (Replaces: W11634635) Appelez-nous -
6 W11699021 Handle, Rear   (Replaces: W11590235) Appelez-nous -
7 W11699007 Handle, Front   (Replaces: W11590247) Appelez-nous -
8 W11698986 Screw   (Replaces: W11337336) Special Order $ 78.97

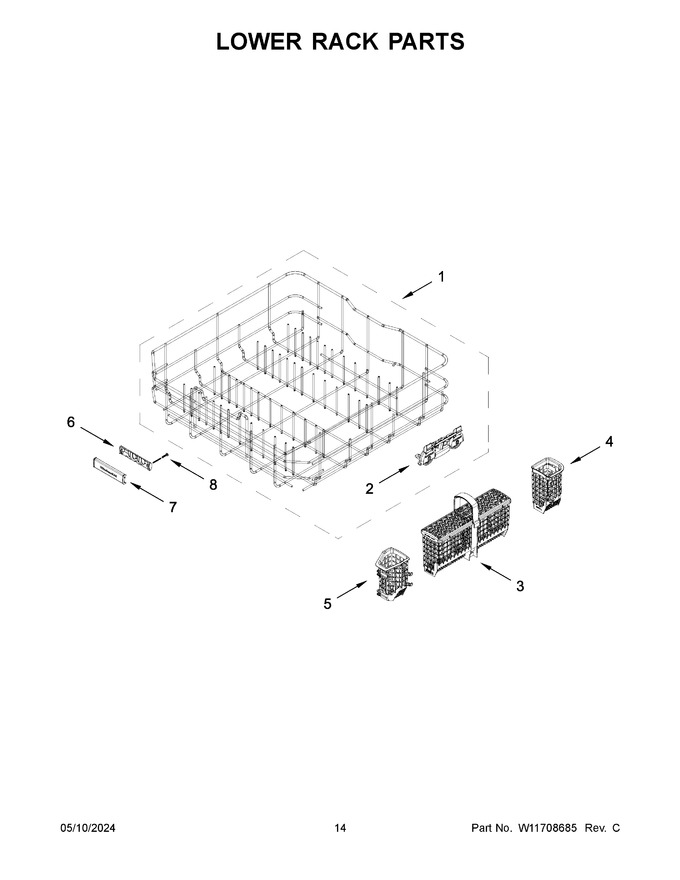

    View Diagram in Separate Window     Print Icon   Print Part List
