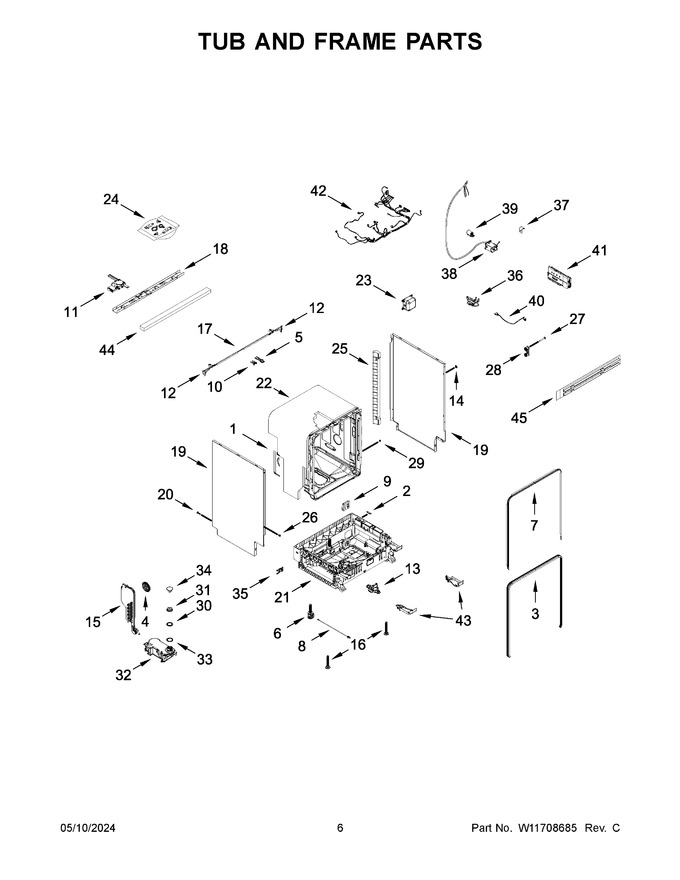

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
ARIA17CA5C5D5FD35750732AA32B1D13FC1 |
|
Tub (not Serviced) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W11690545 |
|
Pad, Tub Support (Replaces: W11671752) |
|
Appelez-nous
|
- |
|
|
|
| 3 |
W11690846 |
|
Gasket, Tub (Replaces: W11658880) |
|
|
Immediately |
$ 101.20 |
|
|
| 4 |
W11693614 |
|
Nut, Air Break (Replaces: W11236521) |
|
Appelez-nous
|
- |
|
|
|
| 5 |
W11693599 |
|
Strike, Latch (Replaces: W11314779) |
|
|
|
$ 25.29 |
|
|
| 6 |
W11696091 |
|
Assembly, Leveling Leg (rear) (Replaces: W11316238) |
|
|
Immediately |
$ 25.70 |
|
|
| 7 |
W11693589 |
|
Retainer, Tub Gasket (Replaces: W11554391) |
|
|
Immediately |
$ 75.65 |
|
|
| 8 |
W11696093 |
|
Rod, Foot Adjustment (rear) (Replaces: W11325471) |
|
|
Immediately |
$ 50.09 |
|
|
| 9 |
W11690570 |
|
Holder, Damper (Replaces: W11668893) |
|
Appelez-nous
|
- |
|
|
|
| 10 |
W11693590 |
|
Cover, Door Opening (Replaces: W11317043) |
|
|
Immediately |
$ 26.09 |
|
|
| 11 |
W11693591 |
|
Assembly, Door Opening (Replaces: W11590760) |
|
|
Immediately |
$ 167.05 |
|
|
| 12 |
W11697221 |
|
Cover, Tub Corner (left) (Replaces: W11316692) |
|
Appelez-nous
|
- |
|
|
|
| 13 |
W11690660 |
|
Float Switch (Replaces: W11602936) |
|
|
Immediately |
$ 70.87 |
|
|
| 14 |
W11697220 |
|
Plug, Tub (Replaces: W11321022) |
|
|
|
$ 12.88 |
|
|
| 15 |
W11693838 |
|
Air Break (Replaces: W11568183) |
|
|
|
$ 93.20 |
|
|
| 16 |
W11696092 |
|
Leg, Leveling (front) (Replaces: W11325130) |
|
|
Immediately |
$ 15.58 |
|
|
| 17 |
W11697223 |
|
Cover, Top (Replaces: W11317036) |
|
Appelez-nous
|
- |
|
|
|
| 18 |
W11697225 |
|
Crossbar, Front Frame (Replaces: W11306174) |
|
Appelez-nous
|
- |
|
|
|
| 19 |
W11701674 |
|
Side Panel (left) (Replaces: W11355600) |
|
|
|
$ 148.94 |
|
|
| 20 |
W11697243 |
|
Screw (Replaces: W10986499) |
|
Appelez-nous
|
- |
|
|
|
| 21 |
W11690567 |
|
Assembly, Base |
|
|
|
$ 197.21 |
|
|
| 22 |
W11697224 |
|
Shield, Tub Sound (Replaces: W11564606) |
|
|
|
$ 145.04 |
|
|
| 23 |
W11695958 |
|
Assembly, Junction Box (Replaces: W11643567) |
|
|
Immediately |
$ 131.57 |
|
|
| 24 |
W11696040 |
|
Miscellaneous Parts Bag |
|
|
|
$ 148.62 |
|
|
| 25 |
W11697245 |
|
Spacer, Side Panel (Replaces: W11525808) |
|
Appelez-nous
|
- |
|
|
|
| 26 |
W11697248 |
|
Screw (Replaces: W11350847) |
|
|
|
$ 13.82 |
|
|
| 27 |
W11697250 |
|
Screw (Replaces: W10941972) |
|
Appelez-nous
|
- |
|
|
|
| 28 |
W11690618 |
|
Tub Mount, Upper Rack (Replaces: W11345595) |
|
|
|
$ 21.84 |
|
|
| 29 |
W11696094 |
|
Button, Tub (Replaces: W11656505) |
|
Appelez-nous
|
- |
|
|
|
| 30 |
W11698540 |
|
Nut, Softner (Replaces: W11227921) |
|
Appelez-nous
|
- |
|
|
|
| 31 |
W11698541 |
|
Cap, Salt (Replaces: W11227934) |
|
Appelez-nous
|
- |
|
|
|
| 32 |
W11698542 |
|
Softener, Water (Replaces: W11546882) |
|
Appelez-nous
|
- |
|
|
|
| 33 |
W11698543 |
|
Seal, Softener (Replaces: W11224085) |
|
Appelez-nous
|
- |
|
|
|
| 34 |
W11698545 |
|
Funnel, Salt (Replaces: W11509486) |
|
|
|
$ 19.96 |
|
|
| 35 |
W11690633 |
|
Plate, In/out Hoses (Replaces: W11686061) |
|
Appelez-nous
|
- |
|
|
|
| 36 |
W11693747 |
|
Jumper, Rfi To Control (Replaces: W11545951) |
|
Appelez-nous
|
- |
|
|
|
| 37 |
W11698572 |
|
Spring, Grounding (Replaces: W10943118) |
|
Appelez-nous
|
- |
|
|
|
| 38 |
W11696044 |
|
Power Cord Assembly (Replaces: W11578108) |
|
|
Immediately |
$ 180.68 |
|
|
| 39 |
W11693746 |
|
Filter, Rfi (Replaces: W11418782) |
|
|
|
$ 67.02 |
|
|
| 40 |
W11690657 |
|
Jumper Harness, Service Port (Replaces: W11646878) |
|
|
Immediately |
$ 16.06 |
|
|
| 41 |
W11696407 |
|
Control, Electronic |
|
|
|
$ 476.30 |
|
|
| 42 |
W11693640 |
|
Wiring Harness, Main (Replaces: W11609315) |
|
|
|
$ 123.83 |
|
|
| 43 |
W11690634 |
|
Channel, Overflow (left) (Replaces: W11684708) |
|
Appelez-nous
|
- |
|
|
|
| 44 |
W11690847 |
|
Foam, Crossbar (Replaces: W11676843) |
|
Appelez-nous
|
- |
|
|
|
| 45 |
W11693847 |
|
Kit, Side Cover Installation (Replaces: W11673775) |
|
|
Immediately |
$ 119.46 |
|
|
| 12A |
W11697222 |
|
Cover, Tub Corner (right) (Replaces: W11316688) |
|
Appelez-nous
|
- |
|
|
|
| 19A |
W11701674 |
|
Side Panel (right) (Replaces: W11355598) |
|
|
|
$ 148.94 |
|
|
| 43A |
W11690635 |
|
Channel, Overflow (right) (Replaces: W11684709) |
|
Appelez-nous
|
- |
|
|
|
View Diagram in Separate Window
Print Part List
