SELECT A DIAGRAM

Cabinet Parts


Dispenser Front Parts


Freezer Door Parts


Freezer Liner Parts


Icemaker & Ice Container Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

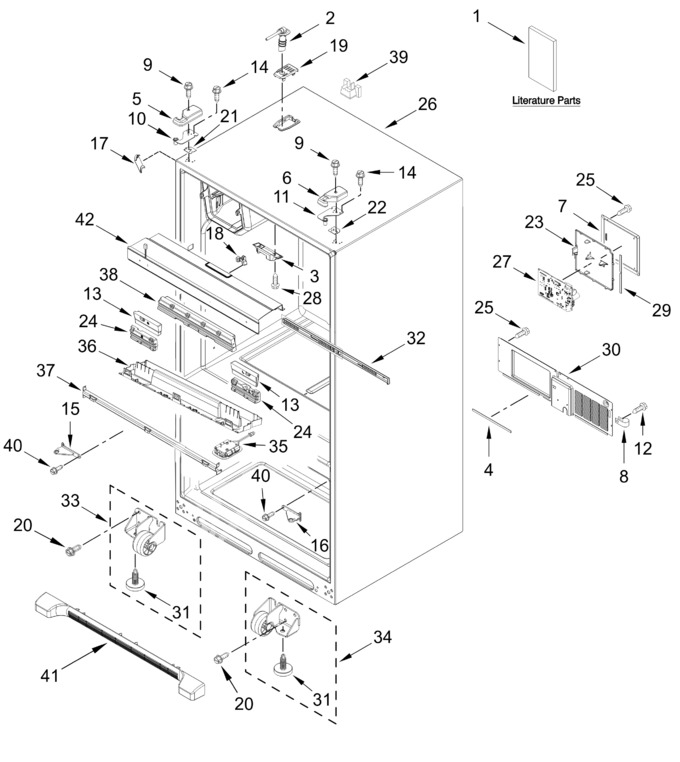

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11415785		Tube, Water   (Replaces: W11232485)			Immediately	$ 75.71
3	WP67003405		Plate, Pivot   (Replaces: 12698403)			Immediately	$ 8.21
4	W11534848		Gasket, Unit Cover			Immediately	$ 22.34
5	WPW10337648		Cover, Top Hinge (grey, Left Hand, Includes Foil)   (Replaces: W10337648)				$ 23.12
6	WPW10191117		Cover, Top Hinge (grey, Right Hand)   (Replaces: 12962302AP)				$ 23.05
7	12961602		Cover, Control Box				$ 116.19
8	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	W11592375		Hinge, Top (left Hand)   (Replaces: W11456626)				$ 31.92
11	W11592374		Hinge, Top (right Hand)   (Replaces: W11456625)			Immediately	$ 31.90
12	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
13	W11697528		Wedge, Spacer (left Hand & Right Hand)   (Replaces: W11651073)		Appelez-nous	-
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 8.43
15	W11642008		Hinge, Center (left Hand)   (Replaces: W11610757)				$ 24.35
16	W11642010		Hinge, Center (right Hand)   (Replaces: W11610758)				$ 24.47
17	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 8.07
18	W10827867		Knob, Vent Slide		Appelez-nous	-
19	W10191141		Cover, Fill Tube (grey)   (Replaces: 12981401AP)				$ 15.06
20	67006564		Screw   (Replaces: W10709365)			Immediately	$ 8.15
21	12999501		Shim, Top Hinge (left Hand)				$ 99.53
22	12999502		Shim, Top Hinge (right Hand)				$ 100.60
23	W11226688		Lid, Hv Control Box   (Replaces: W10296541)				$ 85.16
24	W11686794		Wedge, Spacer (left Hand & Right Hand)   (Replaces: W11651065)		Appelez-nous	-
25	W11686675		Screw   (Replaces: 12990702)				$ 14.27
26	ARI94342C74144DD1D8059B1C42D7D53A15		Cabinet (not A Servicable Part)		Appelez-nous	-
27	W11556912		Control, Electronic   (Replaces: W11321365)			Immediately	$ 352.62
28	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
29	W10914798		Gasket, Control Box		Appelez-nous	-
30	WPW10270394		Cover, Unit   (Replaces: W10270394)				$ 208.73
31	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
32	W10367522		Slide, Mullion Vent		Appelez-nous	-
33	W11820444		Roller Assembly (left Hand)   (Replaces: W10515763)			Immediately	$ 37.35
34	W11820445		Roller Assembly (right Hand)   (Replaces: W10515762)			Immediately	$ 37.35
35	W11483116		Led Light Module   (Replaces: W11228040)			Immediately	$ 21.81
36	W10877249		Housing, Module   (Replaces: W10820998)		Appelez-nous	-
37	W10492234		Brace, Mullion		Appelez-nous	-
38	W10311721		Mullion, Secondary   (Replaces: W11097348)		Appelez-nous	-
39	W11686793		Block, Fill Tube   (Replaces: W11651067)				$ 23.57
40	W11573362		Screw (stainless)   (Replaces: W10673840)				$ 14.72
41	WPW10534155		Grille, Toe (grey)   (Replaces: W10534155)			Immediately	$ 119.56
42	W11749489		Mullion Assembly, Secondary (grey)   (Replaces: W11705647)		Appelez-nous	-
	W11798619		Energy Guide		Appelez-nous	-
	W11665549		Tech Sheet		Appelez-nous	-
	W11798740		Owners Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
