Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI7BA56BA2C1ECE25D7D2B23E3FB9AE19C Housing, Dispenser (not Serviced) Appelez-nous -
2 W11766556 Control, User Interface (stainless)   (Replaces: W11703941) Special Order $ 464.76

3 W11045978 Wall, Dispenser False (nickel) Special Order $ 90.33

4 WPW10353848 Pad Assembly (grey, Includes Blue Light)   (Replaces: W10353848) Special Order $ 321.56

5 W11290115 Led Assembly   (Replaces: W10238083) Special Order $ 84.45

6 WPW10353552 Separator Assembly (includes Spigot And Ice Guide)   (Replaces: W10353552) Special Order $ 205.88

7 W11227371 Spigot Body Assembly   (Replaces: 2316647) Special Order $ 136.38

8 WPW10435760 Guide, Ice   (Replaces: W10339578) In-Stock Immediately $ 23.94

9 W11192301 Tray, Dispenser (nickel)   (Replaces: W11045973) Special Order $ 65.82

10 WPW10267863 Slide, Dispenser Tray (grey)   (Replaces: W10267863) Special Order $ 73.22

11 W10254277 Cover, Board Appelez-nous -
12 WPW10205979 Motor, Ice Door   (Replaces: W10205979) In-Stock Immediately $ 107.60

13 WP4449745 Screw   (Replaces: 4449745) Special Order $ 7.98


    View Diagram in Separate Window     Print Icon   Print Part List

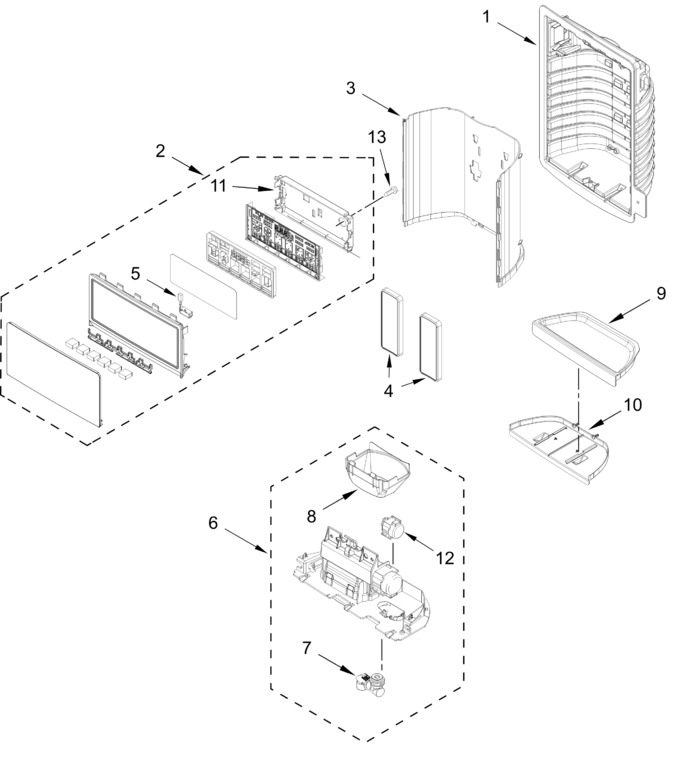

Diagram for ZRFHW257SZ00
