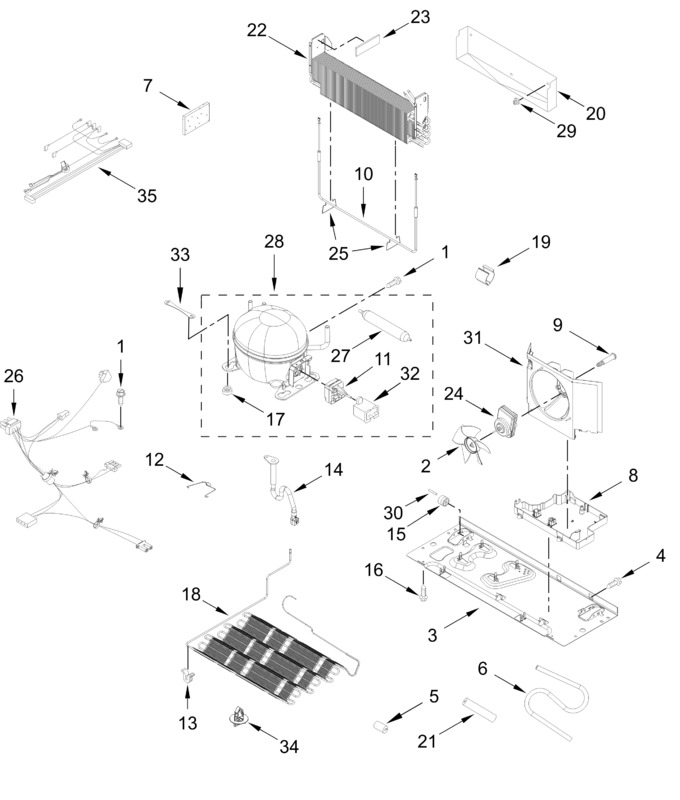

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 89.06
3	W11727651		Basepan   (Replaces: W11604794)				$ 110.55
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
5	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 8.09
6	W11689475		Tube, Suction   (Replaces: W11623085)				$ 68.19
7	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 14.77
8	WPW10655368		Pan, Drain   (Replaces: W10655368)			Immediately	$ 105.20
9	W10829281		Screw   (Replaces: W10622701)				$ 13.28
10	W11547652		Heater, Defrost   (Replaces: W11287565)				$ 138.46
11	W11524472		Device, Start   (Replaces: W11359985)			Immediately	$ 32.45
12	W11689467		Strap, Bale   (Replaces: W11629200)		Appelez-nous	-
13	WPW10137529		Grommet, Condenser   (Replaces: W10137529)				$ 8.76
14	W10619951		Extension, Drain Tube   (Replaces: W10622099)			Immediately	$ 46.23
15	12477102		Roller, Rear			Immediately	$ 7.38
16	12992101		Screw		Appelez-nous	-
17	WPW10169124		Grommet   (Replaces: W11631702)				$ 7.55
18	W11733334		Condenser   (Replaces: W11597885)			Immediately	$ 199.71
19	W10281329		Clip, Drier				$ 13.73
20	W11547653		Tray, Drip   (Replaces: W11337767)				$ 57.02
21	W11751592		Sleeve   (Replaces: W10303521)			Immediately	$ 21.32
22	W11550396		Evaporator   (Replaces: W11337423)				$ 264.79
23	W11451451		Gasket, Foam   (Replaces: W11244122)				$ 13.03
24	W11613295		Motor, Condenser Fan   (Replaces: W11505534)			Immediately	$ 143.68
25	W11380964		Clip, Heater				$ 18.53
26	W11666013		Harness, Unit (includes Power Cord)   (Replaces: W11654037)			Immediately	$ 107.23
27	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 39.12
28	W11686820		Compressor   (Replaces: W11563970)			Immediately	$ 409.64
29	10623002		Clip, Evaporator				$ 12.11
30	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.90
31	W11556315		Shroud, Condenser Fan   (Replaces: W11463236)				$ 83.64
32	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 99.49
33	W10236396		Strap, Compressor			Immediately	$ 20.81
34	W10815863		Clip, Condenser			Immediately	$ 40.66
35	W11548536		Harness, Evaporator Heater (includes Defrost Thermostat)   (Replaces: W11309682)				$ 148.91
	W11506621		6 Nk Ms 00			Immediately	$ 22.00
	W11504415		8.5/8 Nr Ms 00			Immediately	$ 25.89
	ARI9B437A9AB478C7E2DEB1C4CC29D600EE		(capillary Tube To Evaporator)		Appelez-nous	-
	ARI169E995E2DAC0D79856EDDCD3C362715		(suction Tube To Compressor)		Appelez-nous	-
	ARI01A2781A3F964B0DAEAA0FEA5F13BC43		(suction Line To Evaporator)		Appelez-nous	-
	W11504416		8.5/6 Nr Ms 00			Immediately	$ 27.51
	W11504423		8/2 Nr Al 00			Immediately	$ 29.57
	W11504432		6/5 Nr Ms 00			Immediately	$ 25.88
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
	ARI500F2B538D318C1E3390E0716ECE69B7		(also Order The Following Lokring™ Parts)		Appelez-nous	-
	ARI169C38591D7F4AD8FB3D43FAEA44FC75		(charging Tube To Compressor)		Appelez-nous	-
	ARI5DD2AEE280966FBC792DC043E4E4B750		(capillary Tube To Drier)		Appelez-nous	-
	W11504431		7/5 Nr Ms 00			Immediately	$ 27.13
	W11506635		Tube, Charging (1/4 In, Includes Schrader Valve)			Immediately	$ 37.03
	ARI365422773BD6741F2B56A197441A318E		(heat Loop To Drier)		Appelez-nous	-
	W11504445		5/4 Nr Ms 00			Immediately	$ 28.92
	ARIFCEC032782393DEB5E6F8972AEAF15B6		(discharge Tube To Compressor)		Appelez-nous	-
	ARI7AFB8E61A89689BD03F039F645915C7E		(discharge Tube To Condenser)		Appelez-nous	-
	ARIA599D6C290C6325F307DED97678C4E65		51 Grams (r600a)		Appelez-nous	-
	W11504447		5/1.8 Nr Ms 00			Immediately	$ 43.90
	ARI7EAC8134DAB8FF5AAAE27020D6EE8424		(heat Loop To Condenser)		Appelez-nous	-
	W11506623		5 Nk Ms 00			Immediately	$ 22.00
