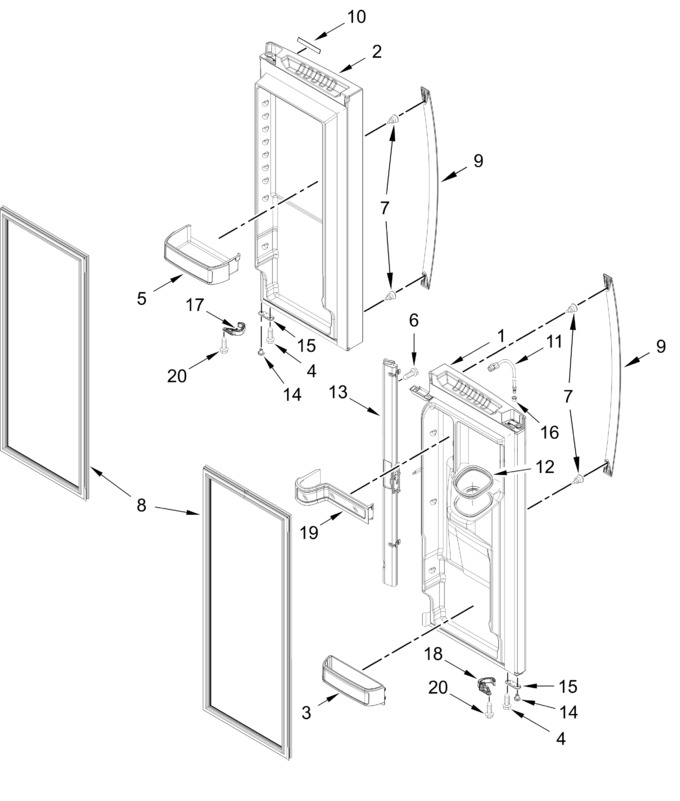

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11435353 | Left Door Assembly, Stainless (Replaces: W11377266) |
|
$ 1,080.69 | |||||
| 2 | W11435352 | Right Door Assembly, Stainless (Replaces: W11377271) |
|
$ 1,066.63 | |||||
| 3 | W11749338 | Bucket, Small (Replaces: W11698402) |
|
$ 66.53 | |||||
| 4 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 5 | W11749336 | Bucket, Gallon (Replaces: W11698404) |
|
$ 67.33 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 17.06 | ||||
| 8 | W10830274 | Gasket, Door (grey) |
|
Immediately | $ 335.87 | ||||
| 9 | W11045129 | Handle, Door (stainless) (Replaces: W11115757) |
|
Immediately | $ 183.31 | ||||
| 10 | W11765141 | Badge-crosley (Replaces: W11743953) |
|
- | |||||
| 11 | W11677733 | Waterline, Door (Replaces: W11431179) |
|
$ 85.79 | |||||
| 12 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 13 | WPW10311757 | Mullion, Door (grey) (Replaces: W10311757) |
|
$ 141.14 | |||||
| 14 | WP12028505AP | Closer, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 15 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 16 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 17 | W10918010 | Latch, Door Closer (grey, Right Hand) (Replaces: W10833739) |
|
Immediately | $ 17.64 | ||||
| 18 | W10918008 | Latch, Door Closer (grey, Left Hand) (Replaces: W10833741) |
|
$ 17.64 | |||||
| 19 | W11749487 | Bucket, Lh Upper (Replaces: W11698403) |
|
- | |||||
| 20 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 |
