SELECT A DIAGRAM
New Model Search:

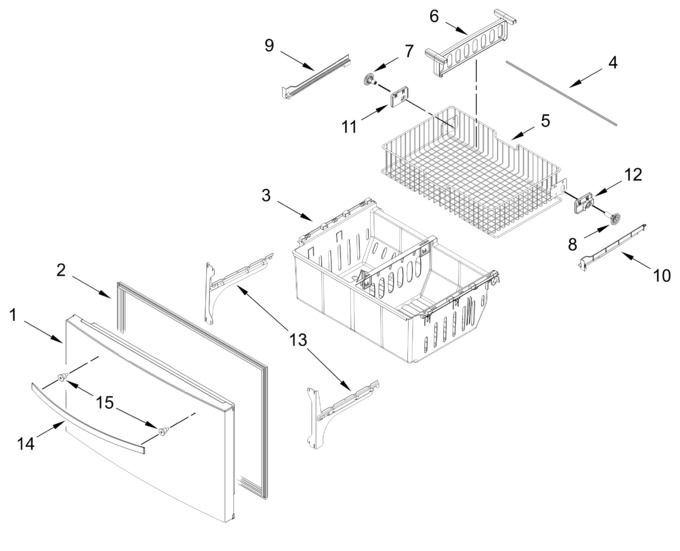

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11435351 | Freezer Door Assembly, Stainless (Replaces: W11377261) |
|
$ 1,075.42 | |||||
| 2 | WPW10714545 | Gasket, Door (grey) (Replaces: W10714545) |
|
$ 323.60 | |||||
| 3 | WPW10293682 | Bin, Lower (Replaces: W10293682) |
|
$ 181.18 | |||||
| 4 | W11173556 | Shaft, Rack (Replaces: W10802333) |
|
$ 32.38 | |||||
| 5 | W11218042 | Basket, Upper (Replaces: W11115237) |
|
$ 203.43 | |||||
| 6 | W10146439 | Divider, Upper Basket |
|
$ 32.66 | |||||
| 7 | WPW10474716 | Gear, Spur (left Hand) (Replaces: W10474716) |
|
Immediately | $ 32.42 | ||||
| 8 | WPW10474715 | Gear, Spur (right Hand) (Replaces: W10474715) |
|
Immediately | $ 32.76 | ||||
| 9 | W11489993 | Rail, Side (left Hand) (Replaces: W11309374) |
|
$ 23.46 | |||||
| 10 | W11489994 | Rail, Side (right Hand) (Replaces: W11309377) |
|
$ 23.46 | |||||
| 11 | W10348259 | Mount, Gear (left Hand) |
|
$ 89.87 | |||||
| 12 | W10348260 | Mount, Gear (right Hand) |
|
$ 89.90 | |||||
| 13 | WPW10330991 | Bracket, Door (left Hand) (Replaces: W10330991) |
|
$ 164.31 | |||||
| 14 | W11045125 | Handle, Door (stainless) (Replaces: W11115761) |
|
Immediately | $ 190.44 | ||||
| 15 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 17.06 | ||||
| WPW10330993 | Bracket, Door (right Hand) (Replaces: W10330993) |
|
$ 166.09 |
