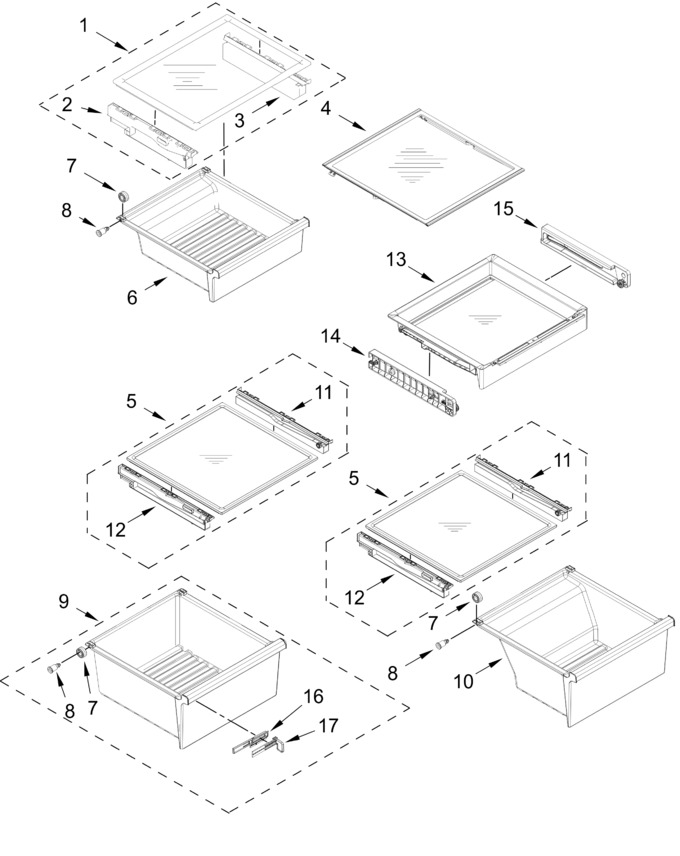

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11759378		Cover Assembly, Snack Pan   (Replaces: W11637394)		Appelez-nous	-
2	W11759380		Track, Snack Pan (left Side)   (Replaces: W11630639)		Appelez-nous	-
3	W11759379		Track, Snack Pan (right Side)   (Replaces: W11630637)		Appelez-nous	-
4	W11759405		Shelf Assembly, Glass   (Replaces: W11687177)		Appelez-nous	-
5	W11759400		Cover Assembly, Pan   (Replaces: W11636179)		Appelez-nous	-
6	W11759406		Pan, Snack   (Replaces: W11718145)		Appelez-nous	-
7	W11164152		Roller, Pan   (Replaces: W10628713)			Immediately	$ 14.17
8	W11175807		Axle, Roller   (Replaces: W10628712)			Immediately	$ 16.11
9	W11759408		Pan, Crisper   (Replaces: W11717592)		Appelez-nous	-
10	W11759409		Pan, Meat   (Replaces: W11718568)		Appelez-nous	-
11	W11759403		Track, Pan (right Side)   (Replaces: W11629456)		Appelez-nous	-
12	W11759404		Track, Pan (left Side)   (Replaces: W11629457)		Appelez-nous	-
13	W11759410		Shelf Assembly, Platter   (Replaces: W11611043)		Appelez-nous	-
14	W11759412		Rail, Platter Shelf (left Side)   (Replaces: W11634198)		Appelez-nous	-
15	W11759411		Rail, Platter Shelf (right Side)   (Replaces: W11634213)		Appelez-nous	-
16	W11746089		Housing, Humidity   (Replaces: W10282880)				$ 27.45
17	W11746089		Slide, Humidity   (Replaces: W10282883)				$ 27.45
