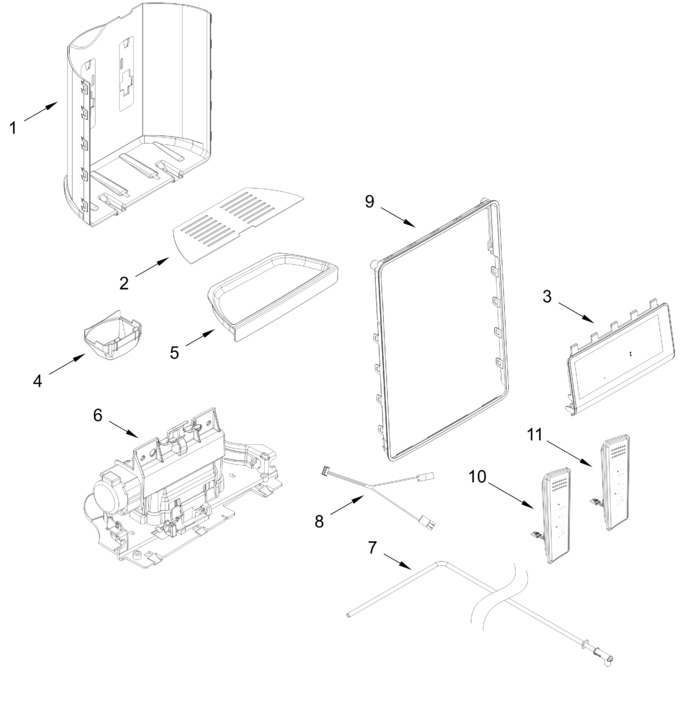

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10254255		Wall, Dispenser Back (black)				$ 121.03
2	WPW10276209		Grate, Drip Tray (stainless)   (Replaces: W10276209)				$ 73.40
3	W11759369		Control, Hmi   (Replaces: W11642061)				$ 364.59
4	WPW10435760		Guide, Ice   (Replaces: W10435760)			Immediately	$ 21.55
5	W10254259		Tray, Dispenser Drip (black)				$ 64.36
6	W11098702		Separator Assembly   (Replaces: W10781994)				$ 139.10
7	W11567542		Tube, Dual Dispenser Water   (Replaces: W10403778)		Appelez-nous	-
8	W11759370		Wire, Dispenser Jumper   (Replaces: W11630178)		Appelez-nous	-
9	W10335549		Ring, Trim (black)		Appelez-nous	-
10	W11760783		Pad Assembly, Ice   (Replaces: W11726639)		Appelez-nous	-
11	W11760781		Pad Assembly, Water   (Replaces: W11658280)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
