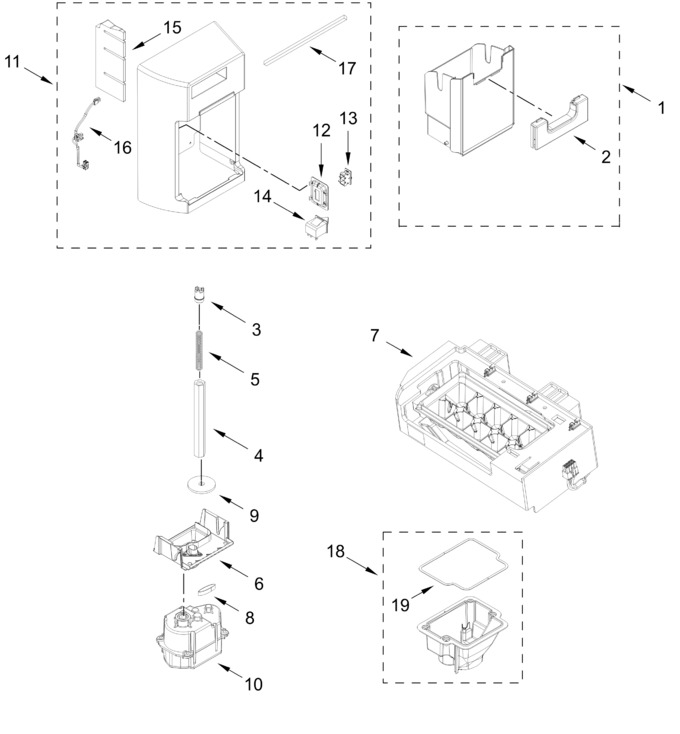

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11768643		Container Assembly, Ice   (Replaces: W11766945)				$ 177.35
2	W11759318		Latch Assembly, Ice Bin   (Replaces: W11629097)		Appelez-nous	-
3	WP2220458		Coupling, Bottom   (Replaces: 2220458)			Immediately	$ 36.94
4	WPW10258544		Shaft, Drive   (Replaces: W10258544)			Immediately	$ 23.87
5	W10852956		Spring, Coupling   (Replaces: W10754509)			Immediately	$ 19.26
6	W11759371		Plate, Ice Chute Mounting   (Replaces: W11667391)			Immediately	$ 95.97
7	W11759451		Ice Maker Assembly   (Replaces: W11664828)				$ 174.83
8	WPW10291905		Chute Gasket   (Replaces: W10291905)				$ 24.91
9	WP2305382		Boot, Rubber   (Replaces: 2305382)				$ 9.64
10	W11202789		Motor, Dispenser   (Replaces: W11117906)			Immediately	$ 299.99
11	W11759372		Cover, Ice Container   (Replaces: W11637396)				$ 86.35
12	W11759373		Plate, Switch   (Replaces: W11675898)		Appelez-nous	-
13	W11759374		Switch, Energy Saver   (Replaces: W11655238)		Appelez-nous	-
14	W11759375		Switch, Rocker Arm   (Replaces: W11655237)		Appelez-nous	-
15	W10749467		Filler, Eps Icemaker Cover		Appelez-nous	-
16	W11759376		Wire Assembly, Switch Jumper   (Replaces: W11604582)		Appelez-nous	-
17	WPW10400435		Gasket, Foam   (Replaces: W10400435)				$ 23.26
18	W11678273		Box, Ice Motor   (Replaces: W10765378)			Immediately	$ 69.32
19	W10166854		Gasket, Ice Motor Box				$ 24.02
