Air Flow Parts


Cabinet Parts


Dispenser Parts


Freezer Door Parts


Freezer Liner Parts


Motor And Ice Container Parts


Optional Parts (not Included)


Refrigerator Door Parts


Refrigerator Liner Parts


Refrigerator Shelf Parts


Unit Parts

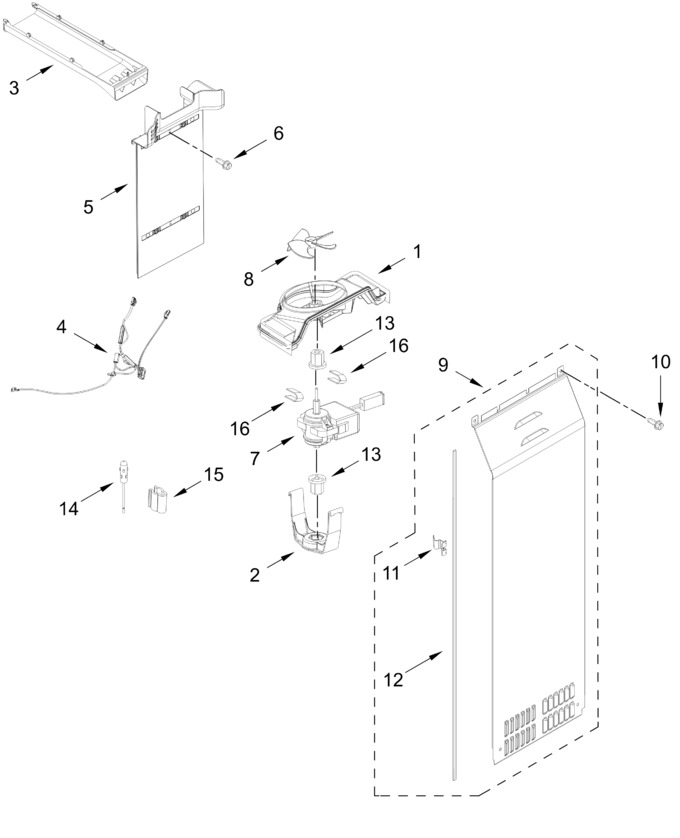

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11807265		Scroll, Fan   (Replaces: W10251462)				$ 27.63
2	8201663		Retainer, Fan Motor   (Replaces: 2223733)				$ 143.34
3	W11759444		Duct, Freezer Air (upper)   (Replaces: W11629455)		Appelez-nous	-
4	W11758890		Wire Harness, Evaporator Fan   (Replaces: W11645425)		Appelez-nous	-
5	W11759443		Duct, Freezer Air (back)   (Replaces: W11686285)		Appelez-nous	-
6	WP489478		Screw   (Replaces: W10001260)				$ 7.36
7	W11833137		Motor, Fan   (Replaces: W11243741)			Immediately	$ 107.45
8	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 39.07
9	W11759441		Cover, Evaporator   (Replaces: W11629085)		Appelez-nous	-
10	WP693995		Screw   (Replaces: W10142292)			Immediately	$ 6.80
11	W11232019		Clip, Evaporator Cover   (Replaces: W10369602)			Immediately	$ 10.25
12	W10240370		Gasket, Evaporator Cover		Appelez-nous	-
13	W11669856		Grommet, Motor   (Replaces: W10449920)			Immediately	$ 14.34
14	WPW10384183		Thermistor   (Replaces: W10384183)			Immediately	$ 106.62
15	W11546684		Clip, Evaporator Thermistor   (Replaces: W11437914)			Immediately	$ 11.10
16	W11205489		Foam, Fc Scroll Fan		Appelez-nous	-
