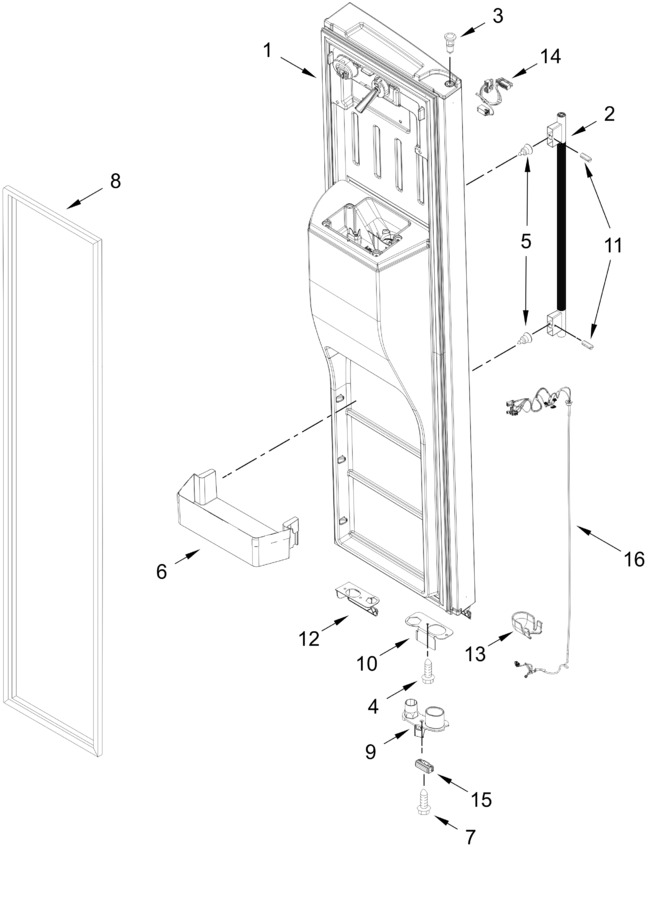

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11788939		Door Assembly, Black Ore (includes Door Gasket And Dispenser Front Parts)   (Replaces: W11775071)		Appelez-nous	-
2	W11794072		Handle Assembly (black Ore)   (Replaces: W11682897)				$ 243.95
3	WP2182181		Thimble, Top   (Replaces: 2200086)				$ 7.34
4	WPW10296816		Screw   (Replaces: W10296816)				$ 7.25
5	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.35
6	W11759448		Bin, Freezer Door   (Replaces: W11705900)		Appelez-nous	-
7	WPW10296804		Screw   (Replaces: W10296804)				$ 10.25
8	WPW10355585		Gasket, Door (grey)   (Replaces: W10249917)				$ 303.54
9	W11607100		Closer, Upper Cam Door (black)   (Replaces: W10257204)			Immediately	$ 12.58
10	W11293380		Bracket, Door Stop   (Replaces: W10910405)				$ 62.29
11	W10907991		Screw, Set   (Replaces: W10693137)				$ 6.80
12	W10632060		Cover, Door Stop (black)				$ 20.07
13	W10323148		Cover, Wire				$ 38.03
14	W11293361		Wire, Jumper   (Replaces: W10850872)				$ 126.80
15	W10407187		Bumper, Door (black)				$ 43.51
16	W11818486		Wire, Door Lv   (Replaces: W11604581)		Appelez-nous	-
