SELECT A DIAGRAM

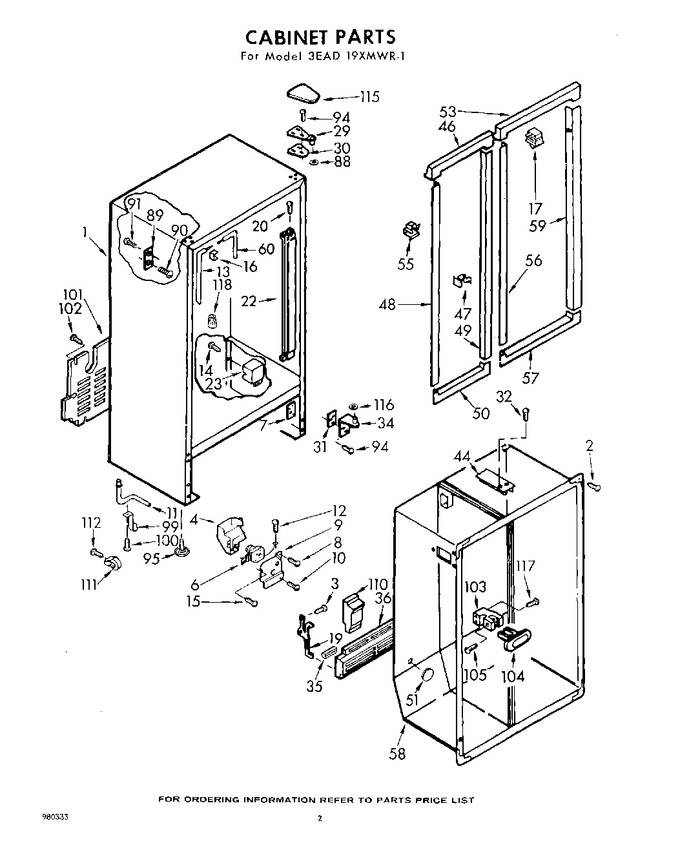

02 - Cabinet


03 - Airflow And Control


04 - Liner


05 - Door , Lit/optional


06 - Unit


07 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 7.92
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
4	548708		Guard, Timer		Appelez-nous	-
6	851684		Defrost, Timer (8 Hr.)		Appelez-nous	-
7	836162		Plate, Tap (2)		Appelez-nous	-
8	488424		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
9	548705		Plate, Timer		Appelez-nous	-
10	488624		Screw, 8 X 3/8 (2)		Appelez-nous	-
11	841646		Extension Fitting		Appelez-nous	-
12	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 11.40
13	851683		Heater, Stile		Appelez-nous	-
14	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
15	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 11.87
16	510291		Clip, Heater (2)		Appelez-nous	-
17	W11384469		Switch, Light (2)   (Replaces: 549695)			Immediately	$ 39.09
19	844614		Support, Grille (2)		Appelez-nous	-
20	488624		Screw, 8 X 3/8		Appelez-nous	-
20	WP308685		Screw (repair)   (Replaces: 488258)			Immediately	$ 7.87
22	985979		Center Rail & Bracket (white)		Appelez-nous	-
22	985980		Center Rail & Bracket (coppertone)		Appelez-nous	-
22	985981		Center Rail & Bracket (avocado)		Appelez-nous	-
22	985982		Center Rail & Bracket (harvest Gold)		Appelez-nous	-
22	989924		Center Rail & Bracket (coffee)		Appelez-nous	-
22	989925		Center Rail & Bracket (golden Harvest)		Appelez-nous	-
22	989926		Center Rail & Bracket (new Avocado)		Appelez-nous	-
22	989927		Center Rail & Bracket (almond)		Appelez-nous	-
23	549947		Box, Junction		Appelez-nous	-
29	842035		Hinge, Top		Appelez-nous	-
30	836151		Shim, Hinge (top) (.030)		Appelez-nous	-
31	836196		Shim, Hinge (bottom) (.030) (repair)		Appelez-nous	-
32	WP489069		Screw, 8 X 1/2 (9)   (Replaces: 488874)			Immediately	$ 8.40
34	836687		Hinge, L.h.		Appelez-nous	-
34	836686		Hinge, R.h.		Appelez-nous	-
35	546131		Bumper, Grille (2)		Appelez-nous	-
36	841676		Grille, Exterior (harvest Gold)		Appelez-nous	-
36	989945		Grille, Exterior (golden Harvest)		Appelez-nous	-
36	989947		Grille, Exterior (almond)		Appelez-nous	-
36	989943		Grille, Exterior (new Avocado)		Appelez-nous	-
36	841672		Grille, Exterior (coppertone)		Appelez-nous	-
36	841674		Grille, Exterior (avocado)		Appelez-nous	-
36	989941		Grille, Exterior (coffee)		Appelez-nous	-
36	841670		Grille, Exterior (white)		Appelez-nous	-
44	842435		Gasket, Divider		Appelez-nous	-
46	843334		Breaker Trim, Top		Appelez-nous	-
47	845807		Clip, Wrapper (17)		Appelez-nous	-
48	836174		Breaker Trim L.s.		Appelez-nous	-
49	836108		Breaker Trim R.s.		Appelez-nous	-
50	836447		Breaker Trim, Bottom		Appelez-nous	-
51	519890		Plug, Hole (2)		Appelez-nous	-
53	843335		Trim, Breaker (top)		Appelez-nous	-
55	836090		Retainer, Breaker Trim (9)		Appelez-nous	-
56	836213		Trim, Breaker (l.s.)		Appelez-nous	-
57	836446		Trim, Breaker (bottom)		Appelez-nous	-
58	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
59	842178		Trim, Breaker (r.s.)		Appelez-nous	-
60	987220		Heater, Mullion		Appelez-nous	-
88	WP487576		Washer, 1/16 (2)   (Replaces: 487576)			Immediately	$ 10.74
89	547603		Strap, Ground		Appelez-nous	-
90	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 11.40
91	488590		Screw, 8-32 X 13/16		Appelez-nous	-
94	WP999367		Screw, 10-32 X 3/4   (Replaces: 488948)				$ 8.56
94	488949		Screw, 12-14 X 3/4		Appelez-nous	-
95	836392		Leveler		Appelez-nous	-
99	841648		Clip, Drain		Appelez-nous	-
100	488845		Screw, 8-32 X 1/2		Appelez-nous	-
101	850457		Cover, Compartment		Appelez-nous	-
102	WP488729		Screw   (Replaces: 488964)			Immediately	$ 8.28
103	836079		Stabilizer (divider)		Appelez-nous	-
104	836080		Stabilizer, Rail		Appelez-nous	-
105	488280		Screw, 8 X 3/4		Appelez-nous	-
110	836372		Insert, Baffle		Appelez-nous	-
111	WPW10250570		Roller Rear (4)   (Replaces: 981122)				$ 42.18
112	488849		Screw, 1/4-20 X 1/2		Appelez-nous	-
115	989895		Cover, Hinge (coffee)		Appelez-nous	-
115	989896		Cover, Hinge (golden Harvest)		Appelez-nous	-
115	842010		Cover, Hinge (white)		Appelez-nous	-
115	985878		Cover, Hinge (coppertone)		Appelez-nous	-
115	985877		Cover, Hinge (avocado)		Appelez-nous	-
115	842014		Cover, Hinge (harvest Gold)		Appelez-nous	-
115	989897		Cover, Hinge (new Avocado)		Appelez-nous	-
115	989194		Cover, Hinge (almond)		Appelez-nous	-
116	WP487802		Washer, 7/32 (repair)   (Replaces: 488184)			Immediately	$ 7.91
117	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
118	227991		Connector		Appelez-nous	-
