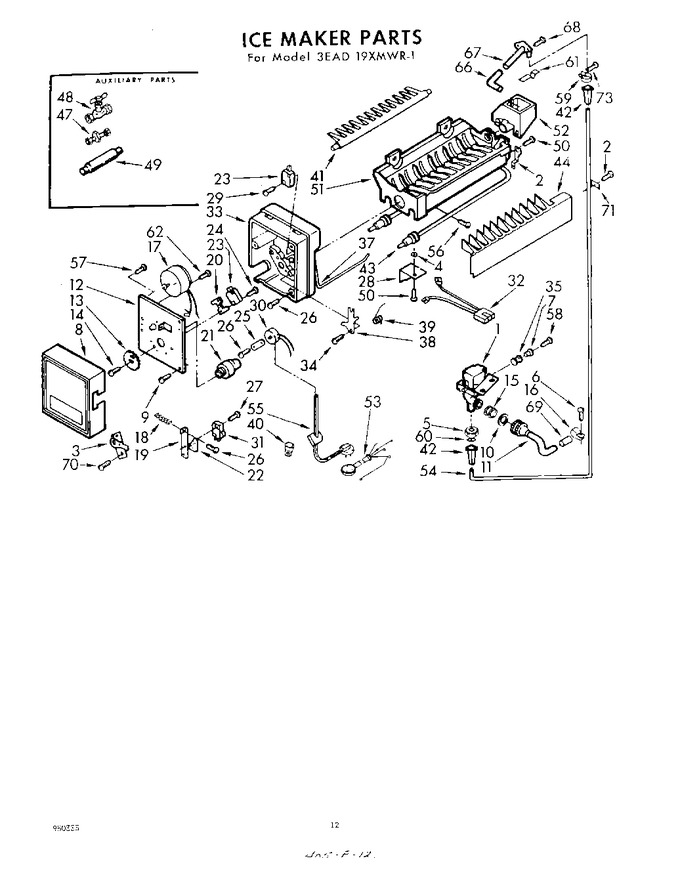

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	627470		Valve		Appelez-nous	-
2	627409		Bracket, Shut-off Arm		Appelez-nous	-
3	627165		Lever & Plate Assembly		Appelez-nous	-
4	627435		Fastener, Spring Clip		Appelez-nous	-
5	WP627018		Nut, Compression   (Replaces: 488810)				$ 11.51
6	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
7	510906		Eyelet Spacer (2)		Appelez-nous	-
8	627426		Cover		Appelez-nous	-
9	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
10	WP16123		Washer   (Replaces: 488292)				$ 8.16
11	836200		Tube Assembly (includes Illus. 10)		Appelez-nous	-
12	627022		Plate, Mounting		Appelez-nous	-
13	625914		Gear		Appelez-nous	-
14	488806		Screw		Appelez-nous	-
15	537588		Nut, Valve		Appelez-nous	-
16	510716		Clamp		Appelez-nous	-
17	626073		Motor		Appelez-nous	-
18	627163		Spring		Appelez-nous	-
19	627024		Plate, Valve Switch		Appelez-nous	-
20	625834		Spacer, Holding Switch				$ 7.99
21	625913		Cam		Appelez-nous	-
22	625835		Insulator		Appelez-nous	-
23	625851		Switch, S.p.d.t.		Appelez-nous	-
23	627229		Switch, S.p.d.t. (alternate)		Appelez-nous	-
24	488361		Screw, 4-40 X 1		Appelez-nous	-
25	625829		Clamp		Appelez-nous	-
26	488372		Screw, 8-32 X 1		Appelez-nous	-
27	00488362		Screw, 4-40 X 3/4   (Replaces: 488362)				$ 144.58
28	WP2256087		Bracket   (Replaces: 625910)				$ 97.65
29	488360		Screw, 4-24 X 3/4		Appelez-nous	-
30	627180		Thermostat (alternate)		Appelez-nous	-
30	625844		Thermostat		Appelez-nous	-
31	625947		Switch, S.p.s.t.		Appelez-nous	-
31	627228		Switch, S.p.s.t. (alternate)		Appelez-nous	-
32	548734		Wire Assembly (water Valve)		Appelez-nous	-
33	625827		Support		Appelez-nous	-
34	627199		Screw, Shoulder		Appelez-nous	-
35	510723		Grommet (2)		Appelez-nous	-
37	627484		Arm, Shut-off		Appelez-nous	-
38	625830		Lever, Arm		Appelez-nous	-
39	625832		Spring, Shut-off Arm		Appelez-nous	-
40	227991		Nut, Wire		Appelez-nous	-
41	00627375		Ejector   (Replaces: 627375)			Immediately	$ 203.33
42	4387491		Insert, Plastic Tube (2)   (Replaces: 841707)				$ 8.23
43	626069		Heater, Mold		Appelez-nous	-
44	625840		Stripper, Ice		Appelez-nous	-
47	512503		Union, 1/4`` X 3/16``		Appelez-nous	-
48	541157		Valve, Shutoff (1/4`` X 1/4``)		Appelez-nous	-
49	978488		Filter Kit		Appelez-nous	-
50	WP489128		Screw, 8-32 X 3/8   (Replaces: 488646)				$ 11.40
51	626068		Mold & Heater Assembly (includes Illus. 43)		Appelez-nous	-
52	625707		Bearing & Inlet		Appelez-nous	-
53	481658		Wire Assembly, Liner		Appelez-nous	-
54	W10823511		Tube, Valve   (Replaces: 836241)			Immediately	$ 32.41
55	627357		Wire, Harness (ice Maker)		Appelez-nous	-
56	WP681414		Screw, 10-12 X 3/8   (Replaces: 488552)			Immediately	$ 8.47
57	488542		Screw, Ground		Appelez-nous	-
58	488590		Screw, 8-32 X 13/16 (2)		Appelez-nous	-
59	WP488878		Clamp   (Replaces: 488878)				$ 12.18
60	488794		``o`` Ring Seal		Appelez-nous	-
61	652604		Clip		Appelez-nous	-
62	488361		Screw (use W/626073 Motor)		Appelez-nous	-
66	836175		Tube, Inlet		Appelez-nous	-
67	653113		Fitting, Water Tube		Appelez-nous	-
68	WP98165		Screw, 8 X 5/8   (Replaces: 488401)				$ 8.57
69	WP2158826		Dampener   (Replaces: 836074)				$ 1.82
70	488622		Screw, 4-40 X 1/4		Appelez-nous	-
71	836472		Clamp, Tube (2)		Appelez-nous	-
73	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 11.87
