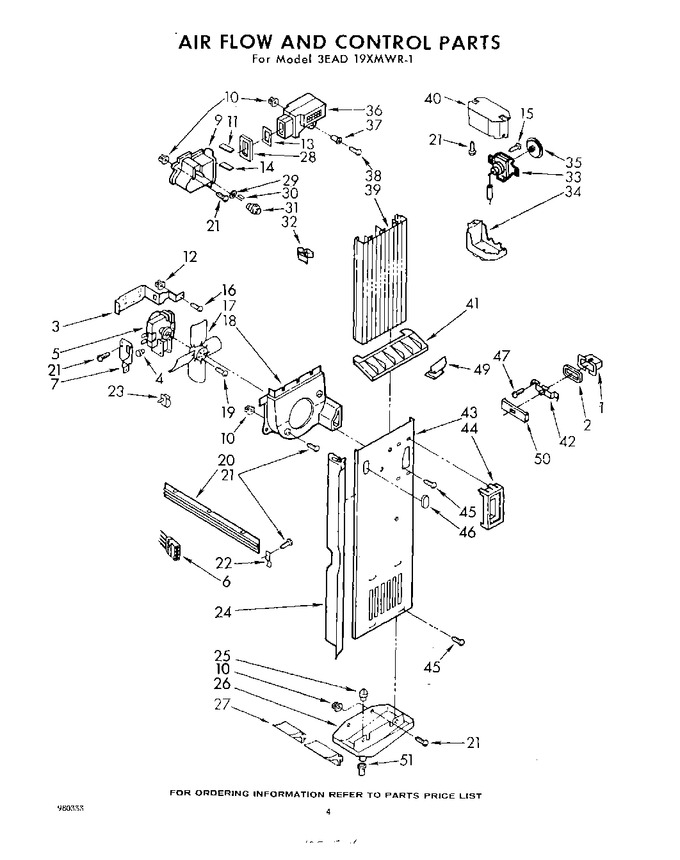

03 - Airflow And Control


04 - Liner


05 - Door , Lit/optional


06 - Unit


07 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	845051		Container, Switch		Appelez-nous	-
2	845052		Gasket, Container		Appelez-nous	-
3	548264		Bracket (single)		Appelez-nous	-
4	548268		Grommet (3)		Appelez-nous	-
5	851845		Fan Motor		Appelez-nous	-
6	481782		Wiring, Wrapper (defrost Timer)		Appelez-nous	-
7	548263		Bracket (double)		Appelez-nous	-
9	841269		Air Scoop		Appelez-nous	-
10	842339		Grommet		Appelez-nous	-
11	984594		Gasket, Shut-off (top)		Appelez-nous	-
12	538449		Grommet (2)		Appelez-nous	-
13	842394		Gasket, Air Diffuser		Appelez-nous	-
14	984595		Gasket, Shut-off (bottom)		Appelez-nous	-
15	488474		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
16	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 8.40
17	548145		Fan Blade		Appelez-nous	-
18	836141		Scroll, Fan		Appelez-nous	-
19	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 244.80
20	821142		Cover, Heat Exchanger   (Replaces: 836514)				$ 68.91
21	W11624204		Screw, 8 X 1/2 (2)   (Replaces: 486194)				$ 14.72
22	836077		Clamp, Tube		Appelez-nous	-
23	851039		Fastener, Wire		Appelez-nous	-
24	841606		Gasket, Evaporator Cover (2)		Appelez-nous	-
25	842259		Cap, Drain		Appelez-nous	-
26	842404		Drain Pan		Appelez-nous	-
27	845564		Gasket, Drain Pan		Appelez-nous	-
28	844871		Gasket, Air Scoop		Appelez-nous	-
29	516847		Retainer, Damper		Appelez-nous	-
30	837444		Knob, Retainer		Appelez-nous	-
31	837445		Control Knob Assembly (includes Illus. 30)		Appelez-nous	-
32	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
33	851800		Thermostat & Barrier		Appelez-nous	-
34	844905		Cover, Thermostat		Appelez-nous	-
35	844888		Knob, Thermostat		Appelez-nous	-
36	842360		Air Diffuser		Appelez-nous	-
37	836667		Spacer		Appelez-nous	-
38	488678		Screw, 8 X 1-3/8		Appelez-nous	-
39	842399		Duct, Air		Appelez-nous	-
40	844889		Box, Thermostat		Appelez-nous	-
41	836144		Cap, Evaporator Cover		Appelez-nous	-
42	851860		Bracket & Switch		Appelez-nous	-
43	984466		Cover, Evaporator		Appelez-nous	-
44	835740		Grille		Appelez-nous	-
45	486214		Screw 8-15 X 1/2		Appelez-nous	-
46	835649		Grommet		Appelez-nous	-
47	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 11.40
49	842522		Baffle, Air		Appelez-nous	-
50	849288		Escutcheon, Switch		Appelez-nous	-
51	841770		Fitting, Drain Pan		Appelez-nous	-
