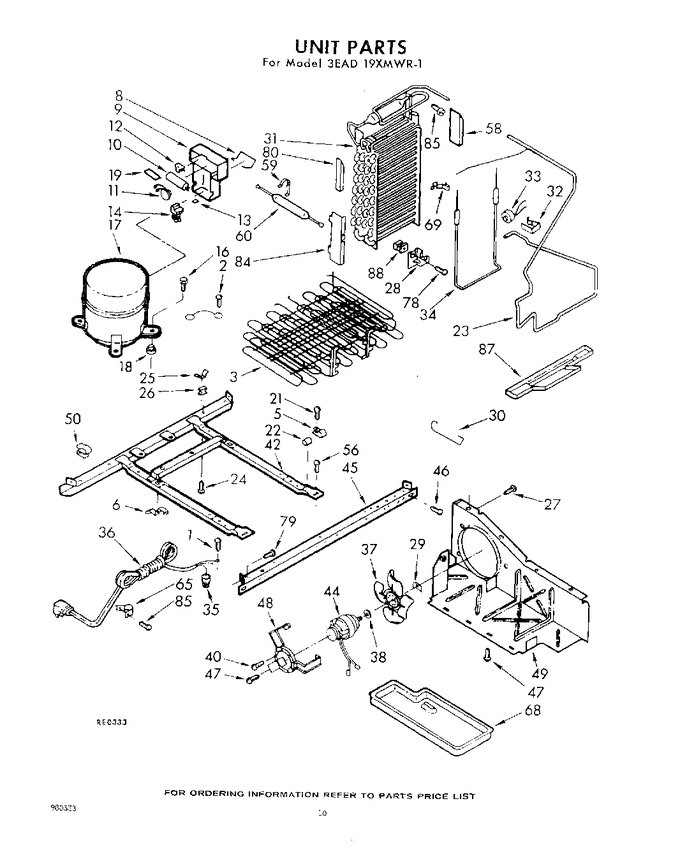

06 - Unit


07 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489128		Screw, Ground   (Replaces: 488500)				$ 11.40
2	303776		Screw, 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-
3	481846		Condenser & Precooler		Appelez-nous	-
5	510716		Clamp (2)		Appelez-nous	-
6	548744		Clip (2)		Appelez-nous	-
8	531318		Spring		Appelez-nous	-
9	549946		Case, Relay		Appelez-nous	-
10	547718		Capacitor		Appelez-nous	-
11	851705		Overload		Appelez-nous	-
12	513720		Clip, Capacitor		Appelez-nous	-
13	547272		Bumper		Appelez-nous	-
14	547711		Relay		Appelez-nous	-
16	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
17	994031		Compressor (production No. 994030)		Appelez-nous	-
18	547283		Grommet (4)		Appelez-nous	-
19	513992		Pad, Rubber		Appelez-nous	-
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
22	510769		Dampener (2)		Appelez-nous	-
23	851048		Heat Exchanger		Appelez-nous	-
24	W11693756		Screw, 8 X 5/8 (4)   (Replaces: 488687)			Immediately	$ 14.76
25	548738		Clamp (4)		Appelez-nous	-
26	548737		Grommet (4)		Appelez-nous	-
27	488845		Screw, 8-32 X 1/2 (5)		Appelez-nous	-
28	842436		Support		Appelez-nous	-
29	WP486692		Nut, Speed   (Replaces: 486692)				$ 8.43
30	850156		Guard, Fan		Appelez-nous	-
31	851439		Evaporator		Appelez-nous	-
32	513584		Clamp		Appelez-nous	-
33	WP4387489		Defrost, Bimetal (alternate)   (Replaces: 850116)				$ 108.99
33	WP4387489		Defrost, Bimetal   (Replaces: 850115)				$ 108.99
34	851690		Heater		Appelez-nous	-
35	227991		Nut, Wire		Appelez-nous	-
36	989436		Cord, Service		Appelez-nous	-
37	989524		Blade, Fan		Appelez-nous	-
38	531107		Washer		Appelez-nous	-
40	488868		Screw, 8-36 X 3/8 (3)		Appelez-nous	-
42	548654		Frame		Appelez-nous	-
44	851680		Motor, Fan (alternate)		Appelez-nous	-
44	851679		Motor, Fan		Appelez-nous	-
45	548662		Rail, Front		Appelez-nous	-
46	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
47	488624		Screw, 8 X 3/8		Appelez-nous	-
48	548695		Bracket		Appelez-nous	-
49	850764		Baffle, Air		Appelez-nous	-
50	548745		Clip, Wire (2)		Appelez-nous	-
56	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
58	652985		Baffle, Air Evaporator		Appelez-nous	-
59	548508		Clamp		Appelez-nous	-
60	W10843121		Drier   (Replaces: 978246)			Immediately	$ 57.13
65	549193		Clamp-cord				$ 14.06
68	842041		Tray, Evaporating				$ 64.92
69	549419		Clamp (4)		Appelez-nous	-
78	WP681414		Screw, 10-12 X 3/8   (Replaces: 488552)			Immediately	$ 8.47
79	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 486993)			Immediately	$ 8.28
80	849335		Baffle, Air		Appelez-nous	-
84	549435		Shield, Heat (2)		Appelez-nous	-
85	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
87	549187		Pan, Drip		Appelez-nous	-
88	538449		Grommet		Appelez-nous	-
88	978026		Valve, Access (5/16``)			Immediately	$ 134.49
88	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
88	978028		Valve, Access (1/2)		Appelez-nous	-
88	978029		Valve Access (5/8``)				$ 93.85
88	978030		Valve, Access (3/4``)				$ 137.25
88	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
