SELECT A DIAGRAM
02 - Cabinet
03 - Airflow And Control

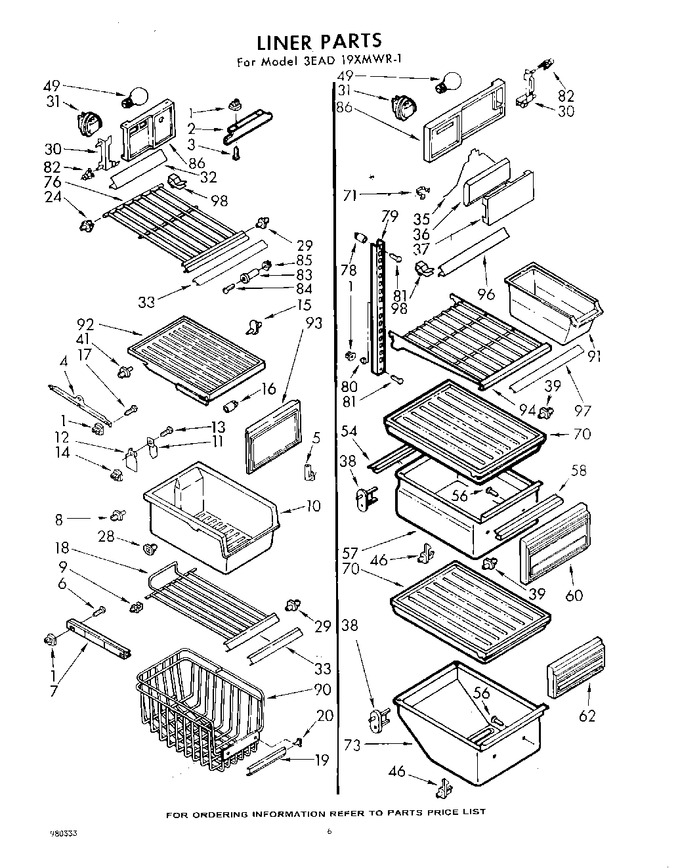

04 - Liner
05 - Door , Lit/optional
06 - Unit
07 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 842339 | Grommet |
|
- | |||||
| 2 | 836216 | Baffle, Liner Top |
|
- | |||||
| 3 | WP489069 | Screw (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 4 | 982321 | Slide |
|
- | |||||
| 5 | 848620 | Stud, Hook (2) |
|
- | |||||
| 6 | W11693756 | Screw, 8-15 X 5/8 (Replaces: 487042) |
|
Immediately | $ 14.76 | ||||
| 7 | 837557 | Track, Shelf (l.s.) |
|
- | |||||
| 7 | 837554 | Track, Shelf (r.s.) |
|
- | |||||
| 8 | 521516 | Stud, Shelf (2) |
|
- | |||||
| 9 | 210518 | Stud, Shelf |
|
- | |||||
| 10 | 982796 | Pan, Ice Cube ((white, Avocado, & New Avocado)) |
|
- | |||||
| 10 | 982797 | Pan, Ice Cube ((coppertone, Coffee, Almond, Harvest Gold & Golden Harv Est)) |
|
- | |||||
| 11 | 538533 | Clip, Support (2) |
|
- | |||||
| 12 | 538532 | Grommet, Special (2) |
|
- | |||||
| 13 | WP681414 | Screw, 10-12 X 3/8 (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 14 | 502037 | Grommet |
|
- | |||||
| 15 | 536410 | Stud, Shelf (2) |
|
- | |||||
| 16 | 533881 | Grommet |
|
- | |||||
| 17 | 487979 | Screw, 8 X 1/2 |
|
- | |||||
| 18 | 837203 | Shelf, Ice Cube Pan |
|
- | |||||
| 19 | 983788 | Trim, Basket |
|
- | |||||
| 20 | 537868 | Cap, Basket Trim (r.s.) |
|
- | |||||
| 20 | 537869 | Cap, Basket Trim (l.s.) |
|
- | |||||
| 24 | 523264 | Stud, Saddle (l.s.) (2) |
|
- | |||||
| 24 | 523263 | Stud, Saddle (r.s.) (2) |
|
- | |||||
| 28 | 512900 | Stud, Retainer (2) |
|
- | |||||
| 29 | 529758 | Stud, Shelf (6) |
|
- | |||||
| 30 | 842356 | Support, Light Lens (l.s.) (2) |
|
- | |||||
| 30 | 842355 | Support, Light Lens (r.s.) (2) |
|
- | |||||
| 31 | 4387478 | Socket (2) (Replaces: 851067) |
|
Immediately | $ 115.67 | ||||
| 32 | 844851 | Reflector, Shelf |
|
- | |||||
| 33 | 839576 | Trim, Shelf Front |
|
- | |||||
| 35 | 842441 | Retainer, Filter |
|
- | |||||
| 36 | 842440 | Filter |
|
$ 337.21 | |||||
| 37 | 848645 | Cover, Filter |
|
Immediately | $ 54.71 | ||||
| 38 | 845985 | Shelf Stud (2) |
|
- | |||||
| 39 | 837412 | Stud, Shelf (4) |
|
- | |||||
| 41 | 521878 | Stud Shelf |
|
- | |||||
| 46 | 836464 | Stud, Shelf (2) |
|
- | |||||
| 49 | WP67002552 | Bulb (2) (Replaces: 851682) |
|
Immediately | $ 12.34 | ||||
| 54 | 840096 | Gasket, Crisper (rear) |
|
- | |||||
| 56 | 488132 | Screw (repair) |
|
- | |||||
| 56 | WP488729 | Screw, 8 X 1/2 (Replaces: 488783) |
|
Immediately | $ 8.28 | ||||
| 57 | 841316 | Pan, Crisper |
|
- | |||||
| 58 | 839014 | Gasket, Crisper (front) |
|
- | |||||
| 60 | 849044 | Cover, Pan ((white, Avocado & New Avocado)) |
|
- | |||||
| 60 | 849043 | Cover, Pan ((coppertone, Coffee, Almond, Harvest Gold & Golden Harv Est)) |
|
- | |||||
| 62 | 849045 | Cover, Pan ((coppertone, Coffee, Almond, Harvest Gold & Golden Harv Est)) |
|
- | |||||
| 62 | 849046 | Cover, Pan ((white, Avocado & New Avocado)) |
|
- | |||||
| 70 | 836463 | Slide & Cover, Pan (2) |
|
- | |||||
| 71 | 533998 | Clip, Speed (3) |
|
- | |||||
| 73 | 840037 | Pan (meat) |
|
- | |||||
| 76 | 843793 | Shelf (2) |
|
- | |||||
| 78 | 512923 | Grommet (4) |
|
- | |||||
| 79 | 653335 | Ladder, Shelf (2) |
|
- | |||||
| 80 | 520965 | Support, Ladder (2) |
|
$ 31.35 | |||||
| 81 | 488357 | Screw, 8 X 1-1/4 |
|
- | |||||
| 82 | 843945 | Clip, Tubular (8) |
|
- | |||||
| 83 | 658944 | Stud, Shelf |
|
- | |||||
| 84 | 487559 | Screw, 8-15 X 1-1/4 |
|
- | |||||
| 85 | 538449 | Grommet |
|
- | |||||
| 86 | 842392 | Lens, Light (freezer) |
|
- | |||||
| 86 | 844922 | Lens, Light (refrigerator) |
|
- | |||||
| 90 | 837247 | Freezer Basket |
|
- | |||||
| 91 | WP982704 | Container, Utility (Replaces: 982786) |
|
$ 32.55 | |||||
| 92 | 848618 | Shelf, Ice Maker Cover |
|
- | |||||
| 93 | 849104 | Front, Ice Compartment ((coppertone, Almond, Coffee, Harvest Gold & Golden Harv Est)) |
|
- | |||||
| 93 | 848617 | Front, Ice Compartment ((white, Avocado & New Avocado)) |
|
- | |||||
| 94 | 843778 | Shelf, Cantilever (4) |
|
- | |||||
| 96 | 843922 | Reflector, Shelf |
|
- | |||||
| 97 | 839577 | Trim, Shelf Front |
|
- | |||||
| 98 | 843960 | Clip, Shelf Trim (2) |
|
- |
