SELECT A DIAGRAM

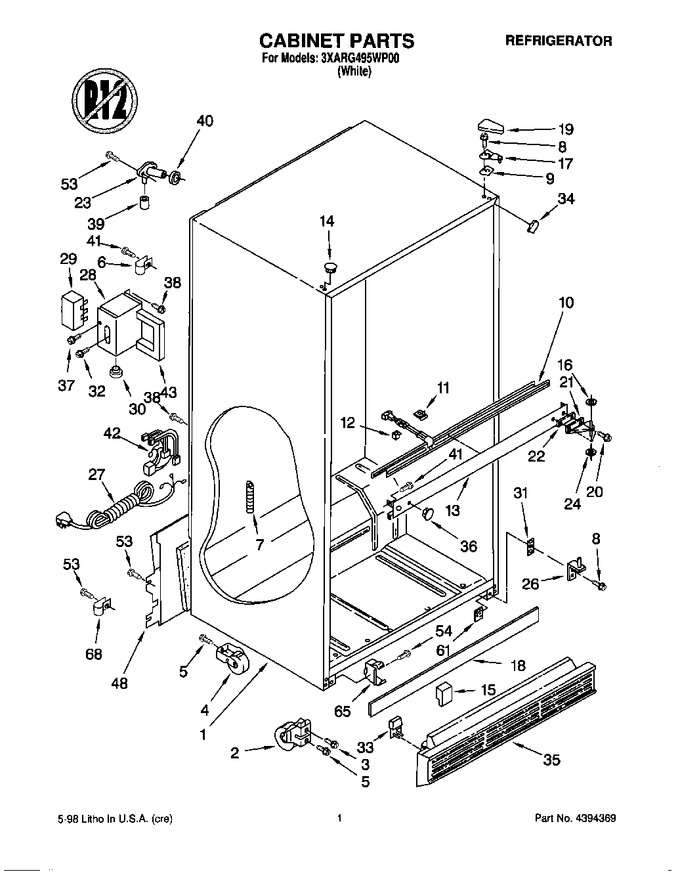

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2174748		Roller, Front		Appelez-nous	-
3	W10850698		Screw   (Replaces: 489456)				$ 12.98
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 37.96
5	WP489427		Screw   (Replaces: 489427)				$ 7.06
6	WP488366		Clamp, Tube   (Replaces: 489385)				$ 10.73
7	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 48.11
8	WP999367		Screw   (Replaces: 489367)				$ 7.70
9	2157269		Shim		Appelez-nous	-
10	2158635		Heater, Mullion		Appelez-nous	-
11	2149060		Clip, Center Rail (4)		Appelez-nous	-
12	1115105		Spacer (3)		Appelez-nous	-
13	2172707		Center Rail		Appelez-nous	-
14	WP2151652		Hole Plug   (Replaces: 2151652)				$ 20.58
15	2176796		Insert, Air Baffle		Appelez-nous	-
16	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.12
17	WP2189412		Hinge, Top   (Replaces: 2157591)				$ 108.21
18	2172708		Deck Rail Cover		Appelez-nous	-
19	WP2213360		Hinge Cover   (Replaces: 2160403)				$ 18.17
20	WP999367		Screw   (Replaces: 489105)				$ 7.70
21	2183129		Hinge, Center		Appelez-nous	-
22	836155		Shim, Hinge Center		Appelez-nous	-
23	WP2196157		Fitting,water Tube   (Replaces: 2174760)			Immediately	$ 11.33
24	WP487802		Washer   (Replaces: 488184)			Immediately	$ 7.12
26	WP2254473		Hinge Butt, Bottom   (Replaces: 2157300)				$ 8.35
27	1129332		Service Cord		Appelez-nous	-
28	2158579		Enclosure, Terminal Block		Appelez-nous	-
29	1129346		Terminal Block		Appelez-nous	-
30	1129449		Bushing		Appelez-nous	-
31	2172744		Spacer		Appelez-nous	-
32	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 10.22
33	1125665		Corner Filler, Grille		Appelez-nous	-
34	1118058		Filler, Wrap Corner		Appelez-nous	-
35	1125663		Grille		Appelez-nous	-
36	1129062		Hole Plug		Appelez-nous	-
37	00489346		Screw   (Replaces: 489346)				$ 342.14
38	WP250830		Ground Screw, 8-32 X 1/2   (Replaces: 489048)				$ 7.90
39	WP487996		Cap   (Replaces: 487996)				$ 7.80
40	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.39
41	WP489478		Screw, 8 X 1/2   (Replaces: 489242)				$ 7.36
42	2209657		Wiring Assy, Intermediate   (Replaces: 2165297)		Appelez-nous	-
43	2167227		Gasket		Appelez-nous	-
48	2165718		Cover And Air Scoop Assembly		Appelez-nous	-
53	WPW10141645		Screw   (Replaces: 489084)				$ 7.25
54	WP489478		Screw   (Replaces: 489242)				$ 7.36
61	2157315		Tap-plate, Bottom Hinge		Appelez-nous	-
65	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.30
68	489348		Clamp		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
