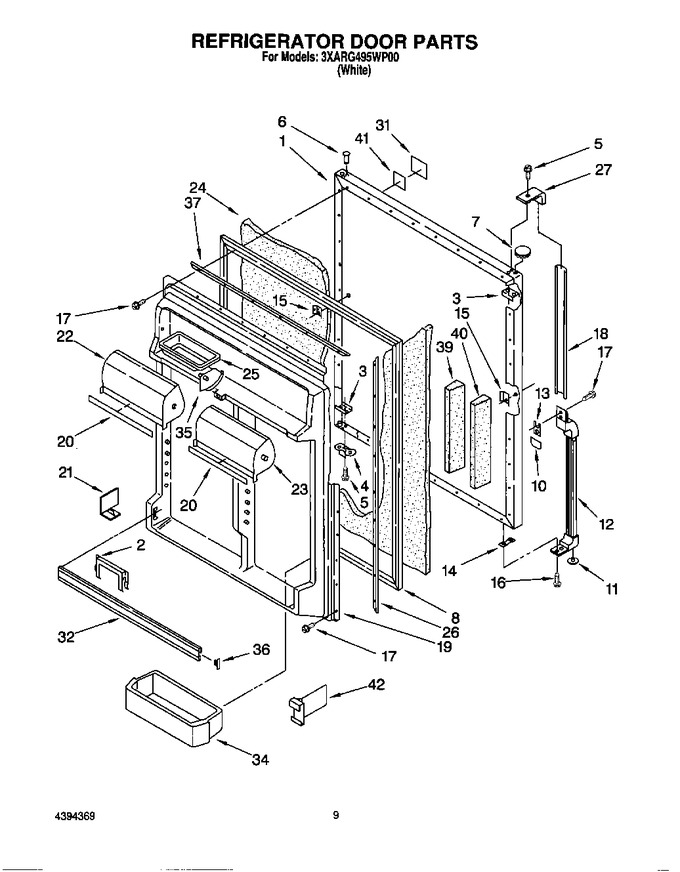

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2174866		Refrigerator Door Panel (also Order Item 24)		Appelez-nous	-
2	2173643		Retainer, Bottle		Appelez-nous	-
3	2183198		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
7	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 8.19
8	2160435		Door Gasket, Magnetic				$ 54.38
10	2179398		Shim		Appelez-nous	-
11	2174433		Hole Plug		Appelez-nous	-
12	2183121		Handle, Center		Appelez-nous	-
13	2183124		Shim, Handle		Appelez-nous	-
14	2151813		Shim, Bottom		Appelez-nous	-
15	941242		Screw Anchor		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489006)				$ 7.98
17	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
18	2179599		Extension		Appelez-nous	-
19	2174741		Interior Door Panel		Appelez-nous	-
20	2164839		Trim, Door Compartment		Appelez-nous	-
21	1123293		Divider-door		Appelez-nous	-
22	2163945		Compartment Door		Appelez-nous	-
23	2163942		Compartment Door		Appelez-nous	-
24	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
25	1125936		Butter, Tray		Appelez-nous	-
26	986008		Gasket Retainer, Side (2)		Appelez-nous	-
27	2179596		End Cap, Extension		Appelez-nous	-
31	2165705		Nameplate		Appelez-nous	-
32	2177228		Trim, Door Shelf		Appelez-nous	-
34	2179604		Bin, Door Shelf		Appelez-nous	-
35	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 8.06
36	2159300		Plug, Trim (2)				$ 4.83
37	1122552		Gasket Retainer, Top & Bottom		Appelez-nous	-
39	2174751		Reinforcement-mid		Appelez-nous	-
40	1122709		Reinforcement, Side		Appelez-nous	-
41	991259		Tape Strip		Appelez-nous	-
42	2171284		Divider, Bin		Appelez-nous	-
