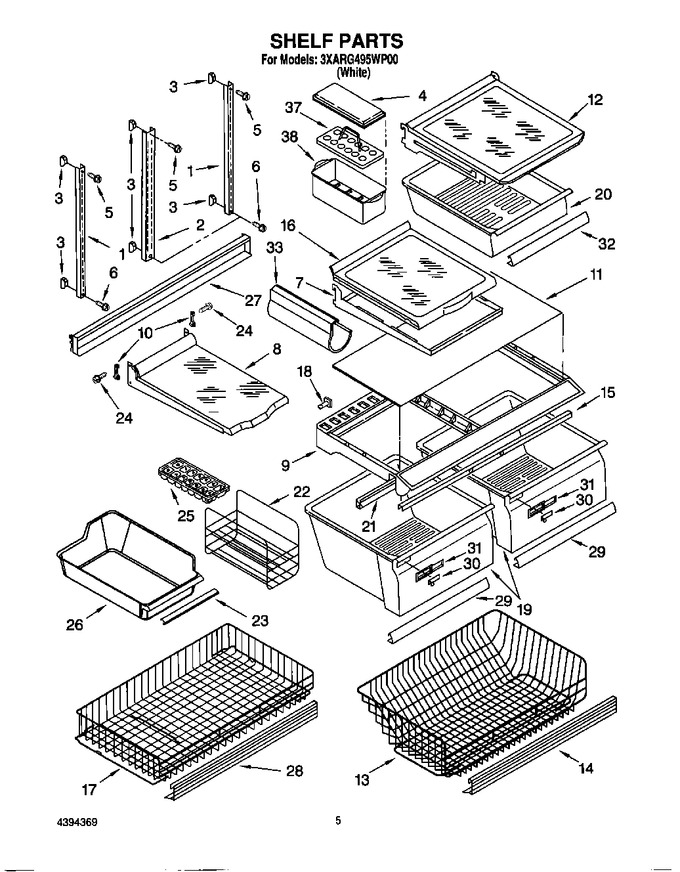

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1127413		Shelf, Ladder (2)		Appelez-nous	-
2	1127414		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (6)				$ 31.35
4	2169935		Cover		Appelez-nous	-
5	489345		Screw,		Appelez-nous	-
6	WP489474		Screw   (Replaces: 489474)			Immediately	$ 8.55
7	2174036		Frame Assembly, Cantilever (3)		Appelez-nous	-
8	2174224		Shelf, Slide		Appelez-nous	-
9	2174134		Crisper Cover		Appelez-nous	-
10	2169608		Hook, Shelf		Appelez-nous	-
11	2174143		Glass, Crisper Cover		Appelez-nous	-
12	2174043		Shelf, Meat Pan		Appelez-nous	-
13	2152799		Freezer Basket, (lower)		Appelez-nous	-
14	2179512		Trim, Basket (lower)		Appelez-nous	-
15	WP2172748		Support, Crisper   (Replaces: 2172748)				$ 102.08
16	2174035		Glass, Shelf		Appelez-nous	-
17	2179448		Freezer Basket, (upper)		Appelez-nous	-
18	1106612		Shelf Stud (2)				$ 7.56
19	2175423		Pan, Crisper (includes Items 29, 30 & 31)		Appelez-nous	-
20	2175426		Pan, Meat (includes Item 32)		Appelez-nous	-
21	2179392		Crisper Gasket, Front		Appelez-nous	-
22	2152823		Rack, Ice Tray		Appelez-nous	-
23	2176360		Trim, Ice Bucket		Appelez-nous	-
24	489419		Screw		Appelez-nous	-
25	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
26	2254352A		Ice Bucket   (Replaces: 2172640)				$ 58.64
27	2169793		Slide, Track		Appelez-nous	-
28	2179513		Trim, Basket (upper)		Appelez-nous	-
29	WP2179234		Trim, Crisper Pan   (Replaces: 2179239)				$ 88.57
30	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 30.60
31	WP2179343		Body, Humidity Control   (Replaces: 2179343)				$ 34.02
32	WP2179243		Trim, Meat Pan   (Replaces: 2179244)				$ 109.65
33	W10777924		Wine Rack   (Replaces: 2179375)				$ 24.78
37	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 18.78
38	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
38	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
38	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
38	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
38	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
38	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
38	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
38	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
38	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
38	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
38	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
38	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
38	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
38	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
38	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
38	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
38	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
38	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
38	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
38	2180410		Door Reversal Instructions		Appelez-nous	-
38	350942		Primer White (13 Oz. Spray Can)				$ 94.14
38	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
38	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
38	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
38	833938		Kit, Terminal Connector				$ 8.47
	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 155.00
	1117510		Torx Key				$ 5.84
	LIT2165697		Energy Guide		Appelez-nous	-
	LIT2165700		Use & Care Guide		Appelez-nous	-
	LIT2176895		Service & Wiring Sheet		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref/frz		Appelez-nous	-
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
