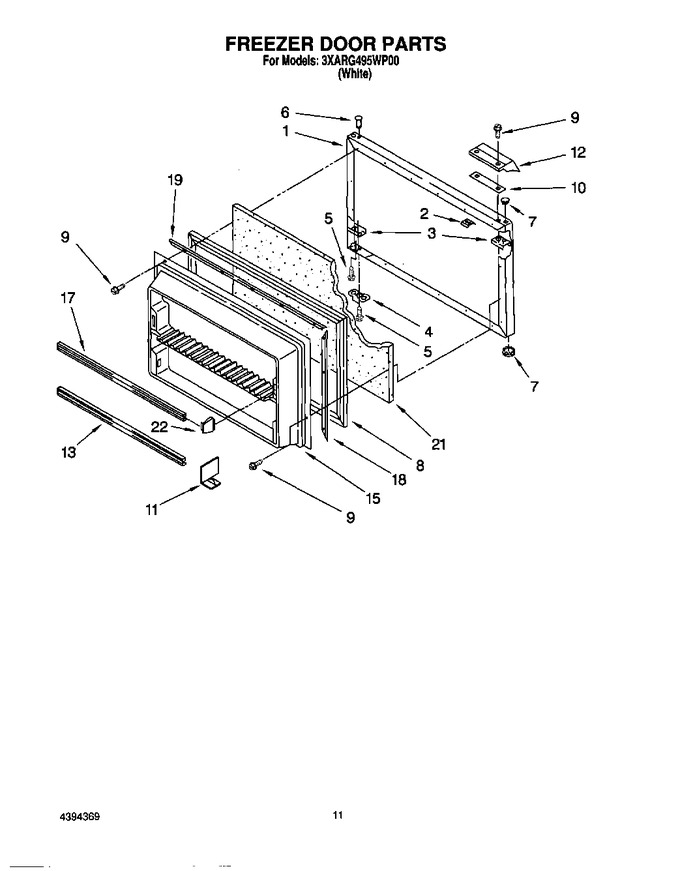

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2174870		Freezer Door Panel (also Order Item 21)		Appelez-nous	-
2	2157332		Screw Anchor		Appelez-nous	-
3	2183198		Plate, Tap (4)		Appelez-nous	-
4	944036		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
7	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 8.19
8	2160436		Door Gasket		Appelez-nous	-
9	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
10	2183024		Shim		Appelez-nous	-
11	1123293		Divider, Shelf		Appelez-nous	-
12	2179593		Handle		Appelez-nous	-
13	2171395		Trim, Door Shelf		Appelez-nous	-
15	2152814		Interior Door Panel		Appelez-nous	-
17	2171394		Trim, Door		Appelez-nous	-
18	986015		Gasket Retainer, Side (2)		Appelez-nous	-
19	1122552		Gasket Retainer, Top & Bottom		Appelez-nous	-
21	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	4386917		End Cap, Trim (2)   (Replaces: 1105685)			Immediately	$ 18.90
