01 - Cabinet
02 - Liner
03 - Compartment Separator
04 - Shelf, Lit/optional
05 - Unit
06 - Refrigerator Door
07 - Freezer Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

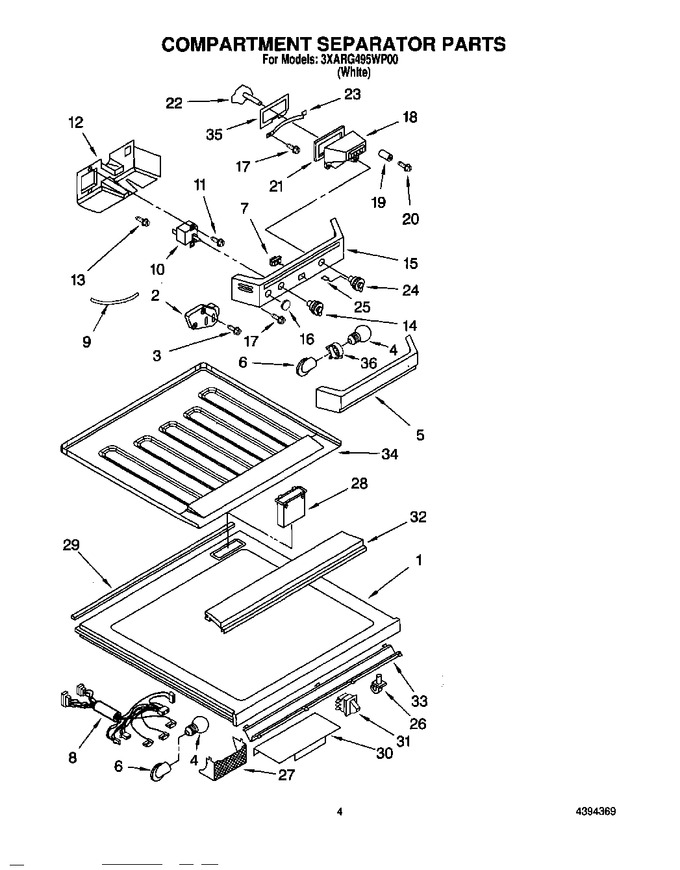

| 1 | 2165717 | Compartment Separator Assembly (includes Center Rail And Heater Assembly) |
|
- | |||||
| 2 | WP2166867 | Defrost Timer (Replaces: 2162346) |
|
$ 187.73 | |||||
| 3 | 489386 | Screw |
|
$ 664.51 | |||||
| 4 | WP67002552 | Light Bulb (Replaces: 851682) |
|
Immediately | $ 12.34 | ||||
| 5 | 983910 | Light Lens |
|
- | |||||
| 6 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 7 | 938049 | Switch, Toggle |
|
- | |||||
| 8 | 2152787 | Wiring Assembly, Control Box |
|
- | |||||
| 9 | WP2196003 | Thermostat Tube Barrier (Replaces: 513573) |
|
$ 8.35 | |||||
| 10 | WP4317800 | Thermostat (Replaces: 2177057) |
|
Immediately | $ 278.68 | ||||
| 11 | 488974 | Screw, 8-15 X 3/8 |
|
- | |||||
| 12 | 2152896 | Bracket, Thermostat |
|
- | |||||
| 13 | 488974 | Screw, 8-32 X 3/8 |
|
- | |||||
| 14 | 2148656 | Control Knob |
|
- | |||||
| 15 | 2165690 | Control Panel |
|
- | |||||
| 16 | 2148655 | Hole Plug |
|
- | |||||
| 17 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 18 | 2160470 | Air Diffuser Assembly |
|
- | |||||
| 19 | 836667 | Spacer |
|
- | |||||
| 20 | WP488163 | Screw (Replaces: 487534) |
|
$ 7.92 | |||||
| 21 | 2160428 | Gasket |
|
- | |||||
| 22 | 984658 | Damper, Air |
|
$ 8.39 | |||||
| 23 | 836493 | Retainer, Air Damper |
|
- | |||||
| 24 | 2148657 | Knob, Air Diffuser (includes Item 25) |
|
- | |||||
| 25 | 837444 | Knob, Retainer |
|
- | |||||
| 26 | 2155555 | Stud |
|
- | |||||
| 27 | 983359 | Light Lens |
|
- | |||||
| 28 | 987019 | Insert, Air Return |
|
- | |||||
| 29 | 1116698 | Gasket, Comp. Sep. |
|
- | |||||
| 30 | 2149068 | Lens-light |
|
- | |||||
| 31 | W11457217 | Switch (Replaces: 1115373) |
|
$ 40.09 | |||||
| 32 | 1121213 | Separator Top-front |
|
- | |||||
| 33 | 2160531 | Air Deflector |
|
- | |||||
| 34 | 2152789 | Separator, Top-rear |
|
- | |||||
| 35 | 2160454 | Gasket, Damper |
|
- | |||||
| 36 | WP2175210 | Shroud, Light (Replaces: 2169193) |
|
$ 86.74 |
