Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10178402 Cover, O.c.back Appelez-nous -
2 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 7.56

3 10678503 Cord, Power Appelez-nous -
4 M0103904 Clamp, Speed Appelez-nous -
5 M0232317 Screw Appelez-nous -
6 B5794201 Clamp Appelez-nous -
7 10547001 Clip, Drier Appelez-nous -
8 10178504 Cover - Wire Appelez-nous -
9 10844001 Harness, Cab Appelez-nous -
10 WPM0104106 Clip,cord   (Replaces: M0104101) Special Order $ 7.35

11 A3189336 Gasket, Foam Appelez-nous -
12 4007A Drier   (Replaces: B2150503) In-Stock Immediately $ 13.55

25 M0103904 Clamp, Speed Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

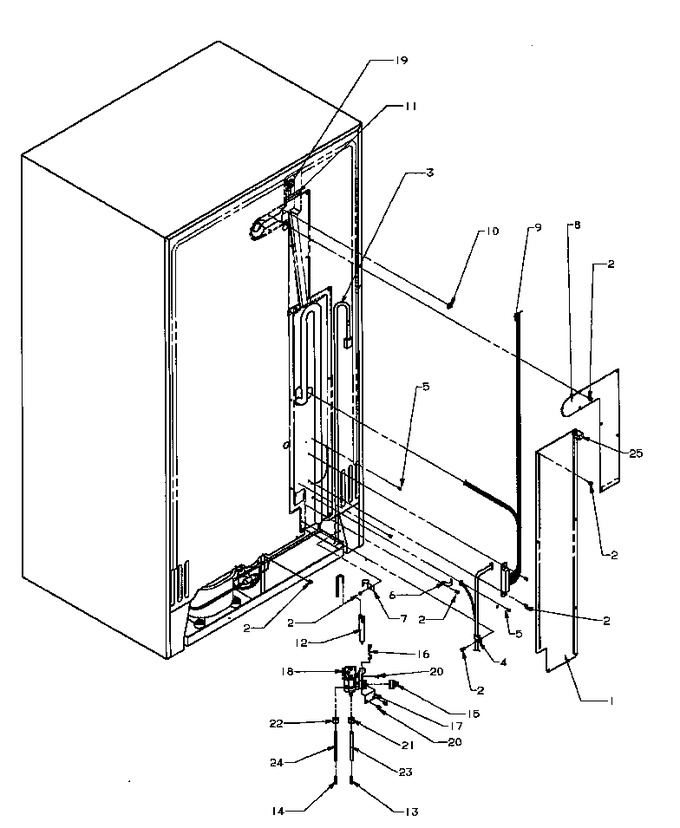

Diagram for SBI20QW (BOM: P1162905W W)
