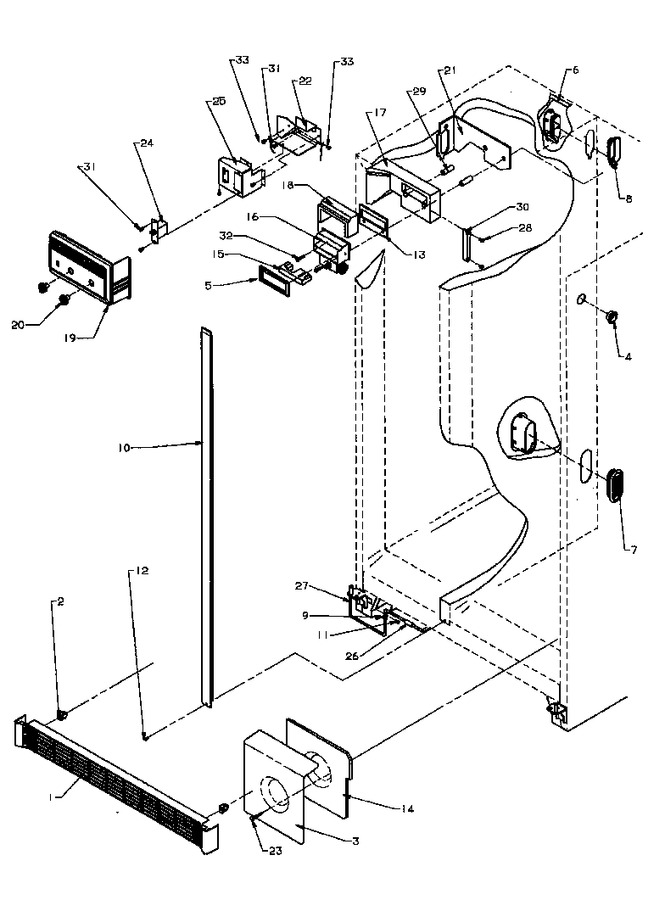

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10470302		Assy, Toe Grille (white)		Appelez-nous	-
2	M0117301		Clip, Grille		Appelez-nous	-
4	A3187801		Retainer		Appelez-nous	-
5	10383201		Gasket, Damper		Appelez-nous	-
6	B5705320		Tubing, Plastic (wtr Tank/do		Appelez-nous	-
7	D7785401		Grille-rtn Air		Appelez-nous	-
8	10178001		Tunnel Air Supply		Appelez-nous	-
10	Y00000000		See Note Vertical Mullion, White, Not Replaceable		Appelez-nous	-
12	12991101		Screw, Sm   (Replaces: M0210816)				$ 12.12
13	B8345401		Gasket, Damper		Appelez-nous	-
15	C8902601		Insert, Control		Appelez-nous	-
16	D7547411		Control-damper		Appelez-nous	-
17	10176602		Air Duct, Waxed		Appelez-nous	-
18	D7788201		Insulation		Appelez-nous	-
19	D7790330		Cover, Cont.		Appelez-nous	-
20	D7795822		Knob, Control		Appelez-nous	-
21	10177901		Gasket, Air Duct		Appelez-nous	-
22	D7822404		Box, Bottom Control		Appelez-nous	-
24	R0161092		Control-temp   (Replaces: C3615024)				$ 204.29
25	D7868606		Box, Control Top		Appelez-nous	-
28	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 7.70
29	A3044208		Spacer Damper		Appelez-nous	-
30	C8977301		Clamp		Appelez-nous	-
31	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.54
32	M0216539		Screw		Appelez-nous	-
33	WP489399		Screw   (Replaces: M0232903)				$ 6.57
