Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10199910 Insert, Crisp Sl Appelez-nous -
2 10289908 Slide Crisper Control Appelez-nous -
3 10524301 Trim, Crisper Top Frt Appelez-nous -
4 10481001 Roller, Pan Special Order $ 10.99

5 10370024 Shelf, Glass Appelez-nous -
6 10370025 Glass, Shelf Appelez-nous -
7 10471715 Pan, Crisper (lower) Appelez-nous -
8 10469019 Pan, Crisper Appelez-nous -
10 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 9.71

11 10635801 Extrusion, Glass Shelf Appelez-nous -
12 10049938 Trim, Shelf (front) Appelez-nous -
13 C8913613 Trim Rear Shelf Appelez-nous -
14 10370018 Shelf, Glass Appelez-nous -
15 10579101 Frame, Cant. Shelf Appelez-nous -
16 A3030353 Gasket Appelez-nous -
17 C8990405 Trim, Rear Appelez-nous -
18 10049939 Trim, Shelf Frt Appelez-nous -
19 D7862986 Rail, Blank Side Appelez-nous -
19 D7862987 Rail, Blank Side Appelez-nous -
20 D7859402 Slide-mk Control Appelez-nous -
21 10518401 Band, Mk Appelez-nous -
22 10469905 Sleeve, Mk Appelez-nous -
23 10469815 Pan, Mt Kpr Appelez-nous -
24 10370026 Glass, Mtkpr Shelf Appelez-nous -
25 D7873602 Grommet, Mk Appelez-nous -
26 10518201 Duct, Mk Air Appelez-nous -
27 M0230028 Screw, No.8-32 X 5/16 Pph (blk) Appelez-nous -
28 10448901 Rack, Wine Appelez-nous -
29 D7789805 Ladder Cantilever Appelez-nous -
29 D7789806 Ladder Cantilever Appelez-nous -
30 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 7.43

31 M0580007 Grommet, Screw Appelez-nous -
32 10043102 Ext. Rear Glass Appelez-nous -
33 10523401 Seal, Crisper Front Appelez-nous -
33 D7718406 Seal, Meat Pan Appelez-nous -
34 10469603 Frame, Crisper Appelez-nous -
34 10470201 Frame, Crisper Appelez-nous -
35 10519302 Band, Crisper Appelez-nous -
35 10519304 Band, Crisper Appelez-nous -
36 10469701 Frame, Mk Appelez-nous -
37 D7869101 Ext. Air Duct Appelez-nous -
38 C8992301 Bracket Appelez-nous -
39 A3189354 Gasket, Foam Appelez-nous -
40 D7599003 Ladder, Center Appelez-nous -
41 M0230923 Screw Appelez-nous -
42 C8913619 Trim, Glass Shlf Rear Appelez-nous -
43 10824401 Frame, Cant.shelf Appelez-nous -
44 10049940 Trim, Shelf (front) Appelez-nous -
45 Y10370067 Glass, Shelf Appelez-nous -
46 10635801 Extrusion, Glass Shelf Appelez-nous -
47 A3189353 Gasket, Foam Appelez-nous -
48 10825201 Frame, Sliding Appelez-nous -
49 10850701 Stop, Refr Shelf Appelez-nous -
50 10826701 Bearing, Sliding Shelf Appelez-nous -
51 10903701 Block, Glide Appelez-nous -
NI 10543713 Assy, Crisper Frame Appelez-nous -
NI 10543714 Assy, Crisper Frame Appelez-nous -
NI 10834401 Ass`y, Sliding Shelf Appelez-nous -
NI 10582414 Assy, Split Shelf (half) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

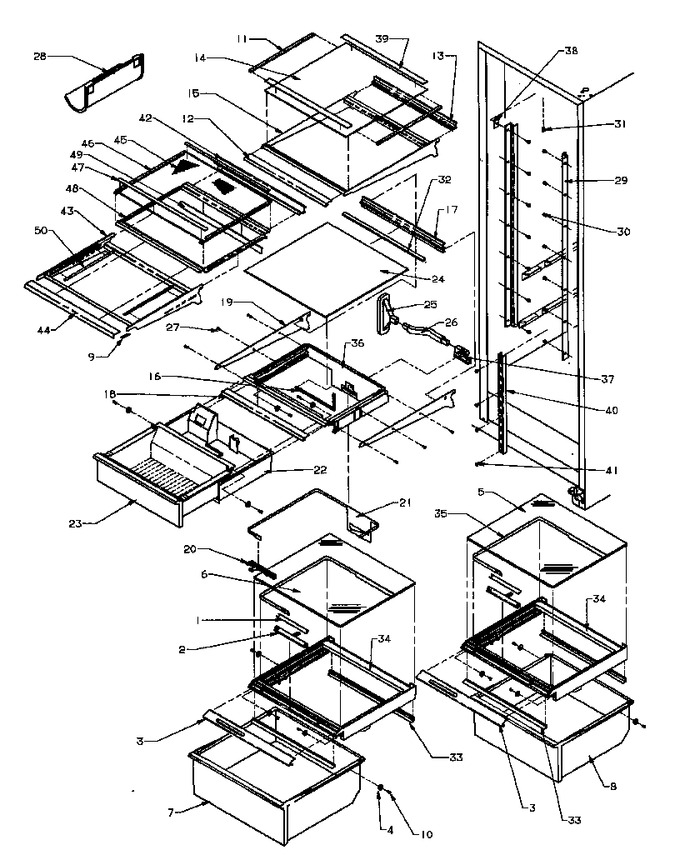

Diagram for SBI20QW (BOM: P1162905W W)
