SELECT A DIAGRAM

01 - Back Unit

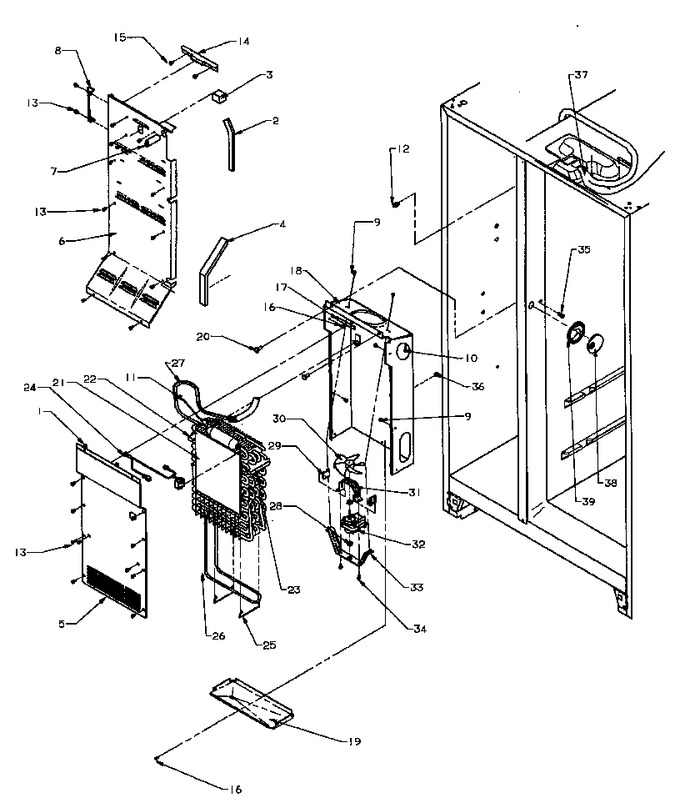

02 - Evap & Air Handling


03 - Factory Installed Ice Maker


04 - Fz Door


05 - Fz Door Hinge & Trim Parts


06 - Fz Shelving & Ref Light


07 - Machine Compartment


08 - Ref Door


09 - Ref Door Hinge & Trim Parts


10 - Ref Shelving & Drawers


11 - Ref/fz Controls & Cabinet Parts


12 - Rollers And Back Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8324801		Clip Ground		Appelez-nous	-
2	B8386602		Gasket		Appelez-nous	-
3	C8976102		Gasket, Air Block		Appelez-nous	-
4	A3189335		Gasket Foam		Appelez-nous	-
5	D7865907		Cover, Evaporator		Appelez-nous	-
6	D7821146		Back, Inner Frz (pnt)		Appelez-nous	-
7	A3127412		Ext. Fill Tube		Appelez-nous	-
8	D7838302		Cover, Supply Air		Appelez-nous	-
9	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 7.88
10	WP489399		Screw   (Replaces: M0232903)				$ 6.57
11	WPW10339879		Tie   (Replaces: M0321202)				$ 7.47
12	M0322202		Tie Wire		Appelez-nous	-
13	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 6.57
14	C8976201		Clamp		Appelez-nous	-
15	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
16	10098801		Rivet		Appelez-nous	-
17	A3189362		Gasket, Foam		Appelez-nous	-
18	D7865806		Evap. Shield		Appelez-nous	-
19	D7850202		Drip Tray Pnt.		Appelez-nous	-
20	M0580003		Grommet		Appelez-nous	-
21	B8327901		Gasket, Evap.		Appelez-nous	-
22	B8385502		Block-lh Air Coil		Appelez-nous	-
23	B8385601		Block P M Air Coil		Appelez-nous	-
24	10544004		Kit, Defrost Thermostat		Appelez-nous	-
25	C8983101		Clip, Evap. Heater		Appelez-nous	-
26	D7872801		Heater, Defrost				$ 67.23
27	R0170050		Assy,low Side-thin Wall Evap		Appelez-nous	-
28	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 41.55
29	A1047901		Shim		Appelez-nous	-
30	C8795501		Fan-evap		Appelez-nous	-
31	C8881301		Brkt Evap Fan		Appelez-nous	-
32	WPC8891605		Motor, Evap Fan   (Replaces: C8891605)				$ 310.34
33	D7767703		Bracket-motor/shroud		Appelez-nous	-
34	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 7.88
35	10426801		Clip, Air Tunnel		Appelez-nous	-
36	M0580002		Grommet A		Appelez-nous	-
37	10554801		Harness, Outer Liner		Appelez-nous	-
38	10164806		Grille Control		Appelez-nous	-
39	10164702		Control-air		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
