Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 M0219730 Screw Special Order $ 7.65

2 B0523563 Insulation Ft. K Appelez-nous -
3 D7828601 Retainer, Door Liner Appelez-nous -
4 C8982801 Retainer, Door Liner Appelez-nous -
5 10574601W Assy Frz Dr Cfc11 Appelez-nous -
6 10525504 Shelf, Freezer Door Appelez-nous -
7 10359702 Gasket (w Frz Dr) Appelez-nous -
8 10534901 Liner, Frz. Door Appelez-nous -
9 10237602 Retainer, Package Appelez-nous -
10 10063206 Rem Dike I & W Lower Appelez-nous -
11 10063102 Clip, Door Dike Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

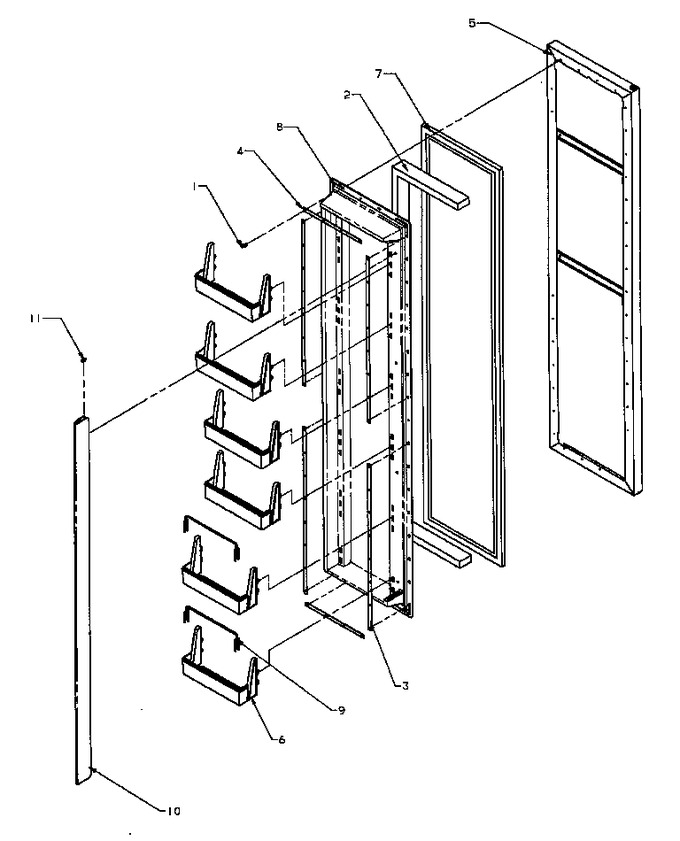

Diagram for SBI20QW (BOM: P1162905W W)
