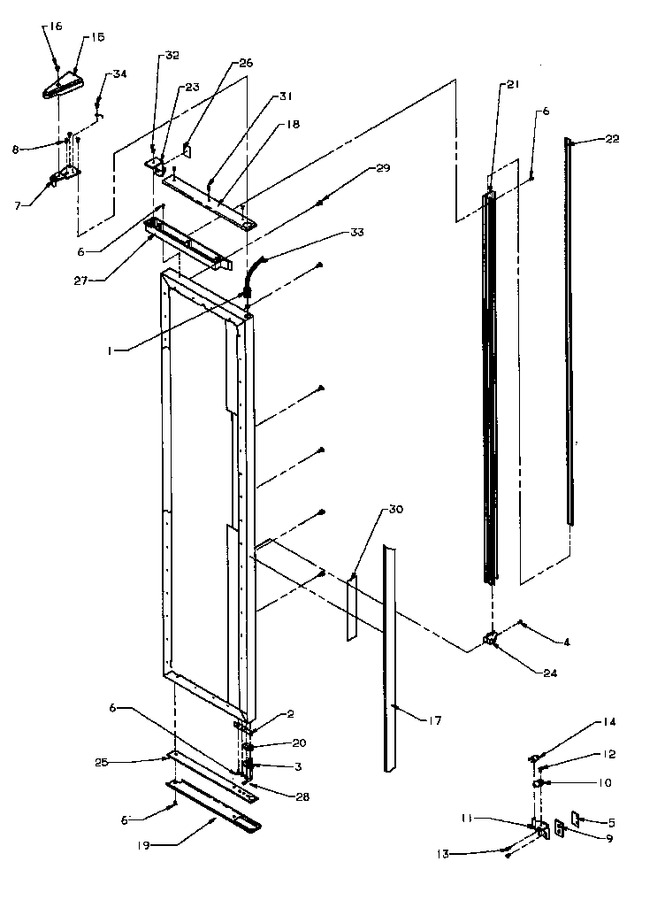

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10393802 | Bushing, Door (wht) |
|
- | |||||
| 2 | C8972404 | Stop, Satin Door |
|
- | |||||
| 3 | R0181181 | Kit,dr Closure (Replaces: D7751402) |
|
Immediately | $ 6.80 | ||||
| 4 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.43 | ||||
| 5 | 10860201 | Kit, Bot.hinge Shim |
|
- | |||||
| 6 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 7.71 | |||||
| 7 | 10495807 | Hinge, Top L (e-ct) |
|
- | |||||
| 8 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 9.52 | |||||
| 9 | 10399502 | Kit,btm Hinge Shim |
|
- | |||||
| 9 | 10399501 | Kit,btm Hinge Shim |
|
- | |||||
| 10 | R0181181 | Kit,dr Closure (Replaces: D7748301) |
|
Immediately | $ 6.80 | ||||
| 11 | 10496104 | Kit,hinge Lh Btm(b) |
|
- | |||||
| 12 | WP489128 | Screw (Replaces: M0220417) |
|
$ 10.26 | |||||
| 13 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 6.80 | |||||
| 14 | B8387702 | Shim, Door Closure |
|
- | |||||
| 14 | B8387701 | Shim, Door Closure |
|
- | |||||
| 15 | 10504206 | Cover, Hinge |
|
- | |||||
| 16 | M0202325 | Screw |
|
- | |||||
| 17 | 10494510 | Trim, Vert |
|
- | |||||
| 18 | 10494202 | Trim, Frz Dr Top |
|
- | |||||
| 19 | 10494102 | Trim, Frz Dr Bot |
|
- | |||||
| 20 | 10361801 | Shim, Dr Bushing |
|
- | |||||
| 21 | 10331304 | Handle, Door |
|
- | |||||
| 22 | D7826808 | Insert, Handle |
|
- | |||||
| 23 | 10494803 | Cap, Handle Top |
|
- | |||||
| 24 | D7828105 | Cap, Handle Bottom |
|
- | |||||
| 25 | 10494604 | Support, Fz Trim |
|
- | |||||
| 26 | D7853501 | Nameplate End Cap |
|
- | |||||
| 27 | 10494701 | Extr, Frz Door |
|
- | |||||
| 29 | 10281002 | Grommet, Screw |
|
- | |||||
| 30 | R0195042 | Double Backed Tape 6ft Roll |
|
- | |||||
| 31 | M0213815 | Screw |
|
- | |||||
| 32 | M0213521 | Screw |
|
- |
