Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 868484 Oven Appelez-nous -
2 868815 Vent Tube (alternate) Appelez-nous -
2 241428 Vent Tube (screw, 10-24 X 3/8 (2)) Appelez-nous -
2 877521 Vent Tube (alternate) Appelez-nous -
4 868643 Retainer Insulation (bottom & Top) Appelez-nous -
4 681151 Screw, 10-24 X 1/2 (8) Appelez-nous -
5 868187 Bracket, Conduit Appelez-nous -
7 681151 Screw, 10-24 X 1/2 (2) Appelez-nous -
7 866471 Retainer Insulation Side (2) Appelez-nous -
8 868468 Bracket, Wrapper Support (r.h. (2)) Appelez-nous -
8 868469 Bracket, Wrapper Support (l.h. (2)) Appelez-nous -
8 681151 Bracket, Wrapper Support (screw, 10-24 X 1/2 (10)) Appelez-nous -
10 877703 Wrapper Range Appelez-nous -
11 680363 Screw, 10-24 X 1/2 (1) Appelez-nous -
11 681151 Screw, 10-24 X 1/2 (16) Appelez-nous -
11 865797 Clamp, Strain Relief Appelez-nous -
11 877697 Back Range Lower Appelez-nous -
12 251379 Plug Button Appelez-nous -
14 866477 Trim, Oven Front (2) Appelez-nous -
14 681151 Screw, 10-24 X 1/2 (4) Appelez-nous -
17 834649 Screw, 10-24 X 7/8 (2) Appelez-nous -
17 WP8203546 Block, Terminal (main)   (Replaces: 241212) In-Stock Immediately $ 27.12

18 487836 Nut, 10-32 (3) Appelez-nous -
19 877531 Panel, Side (upper) (2) Appelez-nous -
19 681151 Screw, 10-24 X 1/2 (10) Appelez-nous -
22 877532 Back, Range Appelez-nous -
22 681151 Screw, 10-24 X 1/2 (11) Appelez-nous -
23 868829 Tube, Oven Vent (upper) Appelez-nous -
23 681151 Screw, 10-24 X 1/2 Appelez-nous -
25 868830 Gasket, Vent Tube Appelez-nous -
26 868831 Bracket, Vent Tube Appelez-nous -
28 486608 Washer Flat (3) Appelez-nous -
28 868159 Cover, Wiring Appelez-nous -
28 681151 Screw, 10-24 X 1/2 (6) Appelez-nous -

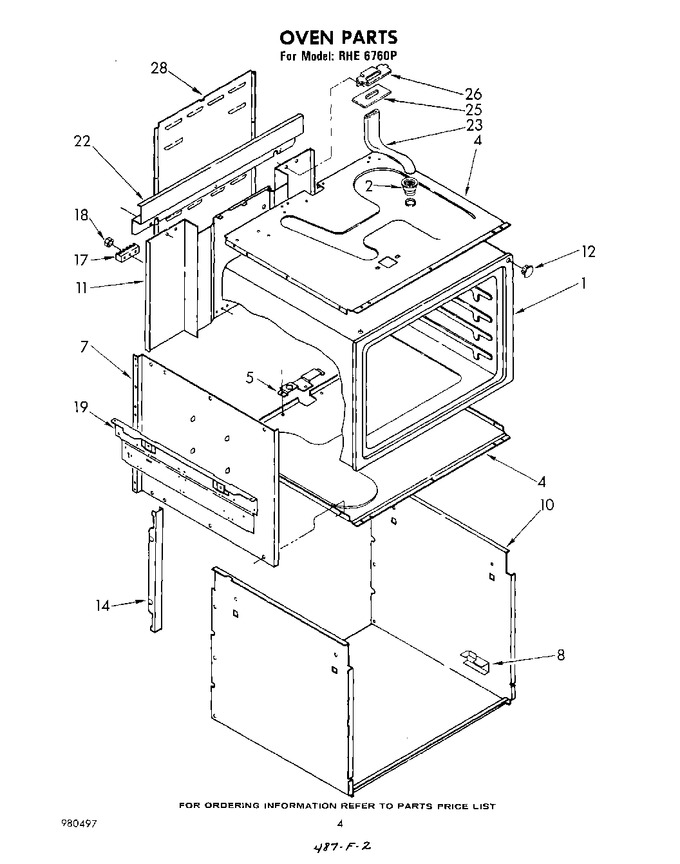

    View Diagram in Separate Window     Print Icon   Print Part List
