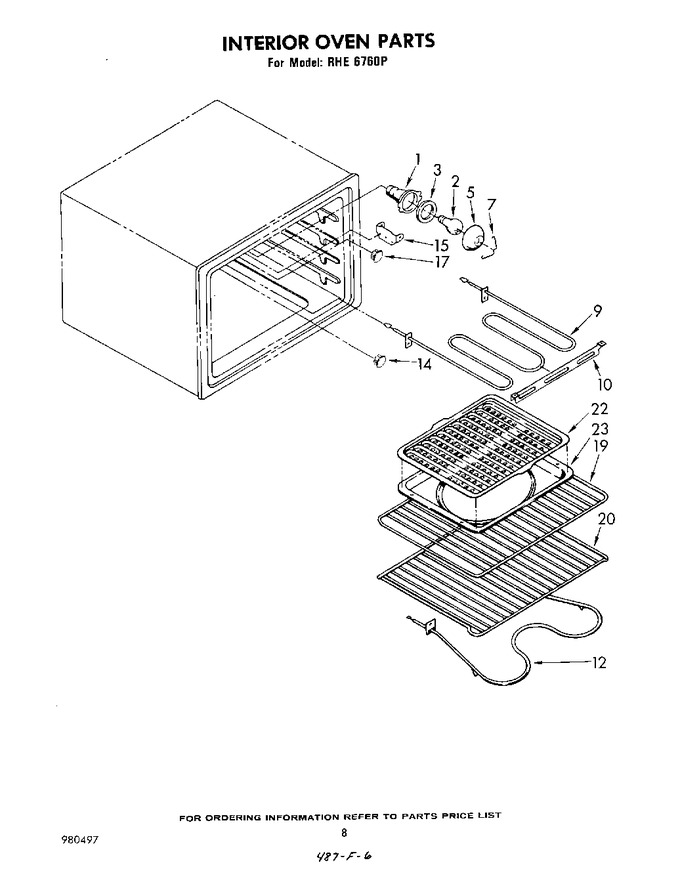

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241422		Washer (2)		Appelez-nous	-
1	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
1	866133		Socket, Light		Appelez-nous	-
2	8009		Bulb, Light   (Replaces: 527949)			Immediately	$ 17.51
3	241609		Gasket, Oven Light		Appelez-nous	-
5	241592		Cover, Oven Light		Appelez-nous	-
7	866134		Retainer, Cover		Appelez-nous	-
9	865934		Unit, Broiler		Appelez-nous	-
9	486146		Screw, 10-24 X1/2 (2)				$ 12.83
10	866429		Hanger, Broil Unit		Appelez-nous	-
10	486146		Screw, 10-24 X1/2 (2)				$ 12.83
12	WP865940		Unit Bake (alternate)   (Replaces: 868964)				$ 138.75
12	WP865940		Unit Bake (alternate)   (Replaces: 868963)				$ 138.75
12	486146		Unit Bake (screw, 10-24 X 1/2 (2))				$ 12.83
14	251379		Button, Plug		Appelez-nous	-
15	486146		Screw (2)				$ 12.83
15	865959		Bracket, Thermostat		Appelez-nous	-
17	142017		Button, Plug 1/2		Appelez-nous	-
19	865983		Rack, Oven Regular		Appelez-nous	-
20	865984		Rack, Oven Offset		Appelez-nous	-
22	4396923		Grill, Broiler Pan   (Replaces: 868504)			Immediately	$ 54.64
23	868505		Pan, Broiler		Appelez-nous	-
