Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 868870 Grate, Grille Appelez-nous -
2 868453 Element, Grille (includes Illus. 10) Appelez-nous -
3 241547 Pushnut (3/16``) (2) Appelez-nous -
3 868458 End Cap, Basket Appelez-nous -
4 868457 Basket, Rack Appelez-nous -
5 248568 Handle, Pan Appelez-nous -
6 868853 Pan, Grille Appelez-nous -
7 868459 Handle, Rock Basket Appelez-nous -
8 868460 Rocks, Lava (1 Lb.) Appelez-nous -
9 261949 Kit, Grille Module (complete) Appelez-nous -
10 868878 Pushnut Appelez-nous -
10 868437 Receptacle, Male Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

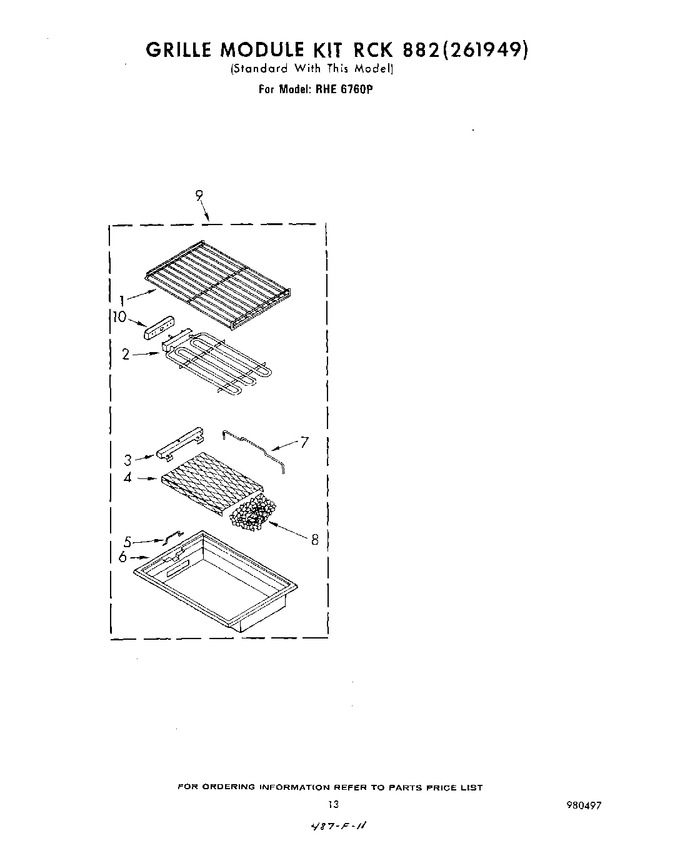

Diagram for RHE6760P
