Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP660532 Unit, Surface (6``) (2)   (Replaces: 868445) In-Stock Immediately $ 45.10

2 868444 Bowl, Surface Unit (6``) (2) Appelez-nous -
3 868462 Cooktop, 6/6 Appelez-nous -
3 486978 Screw, 8-32 X 3/8 (4) Appelez-nous -
4 868450 Handle, Cooktop Appelez-nous -
5 330031 Receptacle & Wire Assembly   (Replaces: 868464) In-Stock Immediately $ 17.93

6 868438 Terminal, Male Appelez-nous -
7 WP486754 Screw, 6-32 X 5/16 (3)   (Replaces: 680406) Special Order $ 7.21

7 868440 Bracket, Ground Appelez-nous -
7 866272 Pushnut, 1/8 Appelez-nous -
8 868686 Shield, Wire Appelez-nous -
9 486525 Screw, 8-32 X 3/16 (4) Appelez-nous -
9 868437 Receptacle, Male Appelez-nous -
9 WP486754 Screw, 6-32 X 5/16 (2)   (Replaces: 9406386) Special Order $ 7.21

10 868814 Insulator, Receptacle Appelez-nous -
11 868813 Pan, Module Appelez-nous -
12 868466 Clamp, Wire Appelez-nous -
13 261951 Kit, Surface Unit Module (6/6) (complete) Appelez-nous -
14 868522 Medallion Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

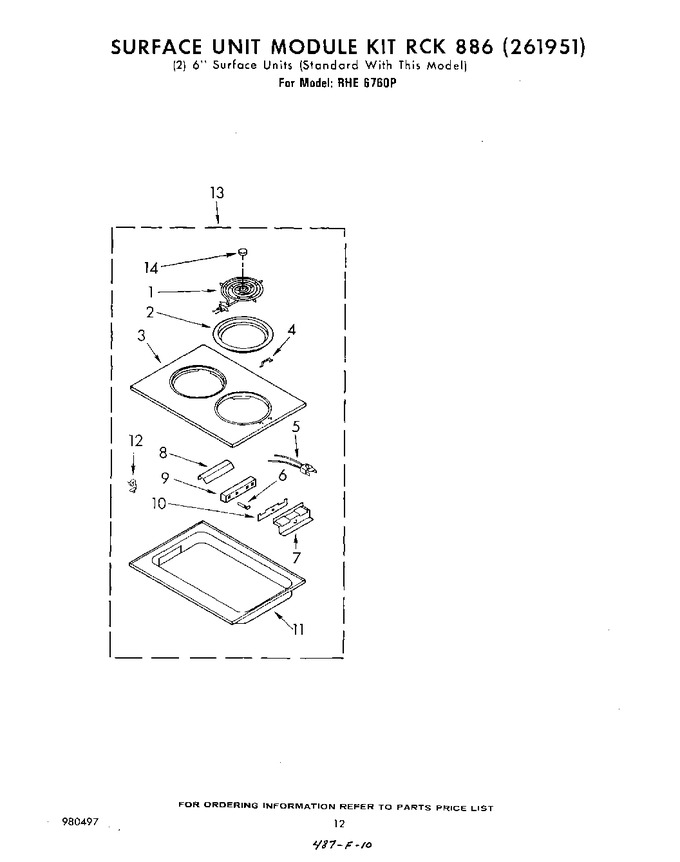

Diagram for RHE6760P
