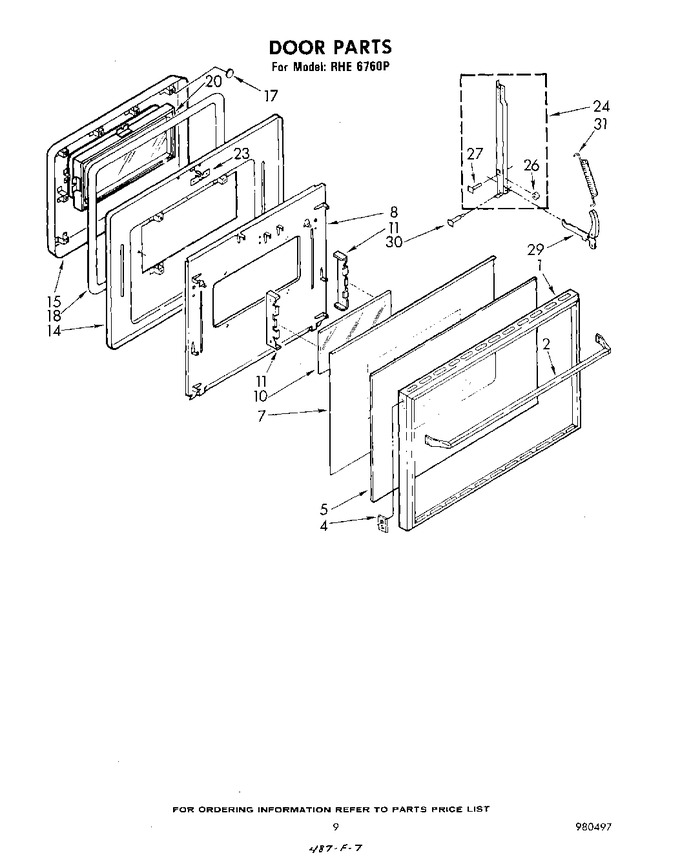

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868494		Frame, Oven Door		Appelez-nous	-
1	868430		Screw, 10-24 X 1/2 (5)		Appelez-nous	-
2	866046		Handle, Door		Appelez-nous	-
4	866259		Trim, Frame		Appelez-nous	-
4	866155		Screw, 6-32 X 3/8 (4)		Appelez-nous	-
4	271482		Nut, Hex 6-32 (4)		Appelez-nous	-
5	868199		Glass, Outer (black)		Appelez-nous	-
7	868200		Panel, Heat Reflector		Appelez-nous	-
8	340184		Screw   (Replaces: 877702)				$ 12.70
8	868940		Panel, Airwash		Appelez-nous	-
10	868502		Glass, Inner		Appelez-nous	-
11	681151		Screw, 10-24 X 1/2 (40)		Appelez-nous	-
11	868503		Retainer, Glass (2)		Appelez-nous	-
14	681151		Screw, 10-24 X 1/2 (9)		Appelez-nous	-
14	868938		Liner, Oven Door		Appelez-nous	-
15	868886		Baffle		Appelez-nous	-
17	142001		Button, Plug 3/16		Appelez-nous	-
18	877590		Seal, Oven Door		Appelez-nous	-
20	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
20	868797		Window		Appelez-nous	-
23	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
23	877507		Strike		Appelez-nous	-
23	241422		Washer (2)		Appelez-nous	-
24	865972		Channel, Hinge (2)		Appelez-nous	-
24	247326		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
26	834471		Roller,\ Door\ Stop (2)		Appelez-nous	-
26	241422		Washer (2)		Appelez-nous	-
27	241423		Rivet, Square Head (2)		Appelez-nous	-
29	865640		Arm Assembly (2)		Appelez-nous	-
30	241334		Pin, Hinge (2)		Appelez-nous	-
31	241312		Spring, Door (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
