SELECT A DIAGRAM

02 - Control Panel


03 - Oven


04 - Cooktop


05 - Interior


06 - Door


07 - Surface Unit

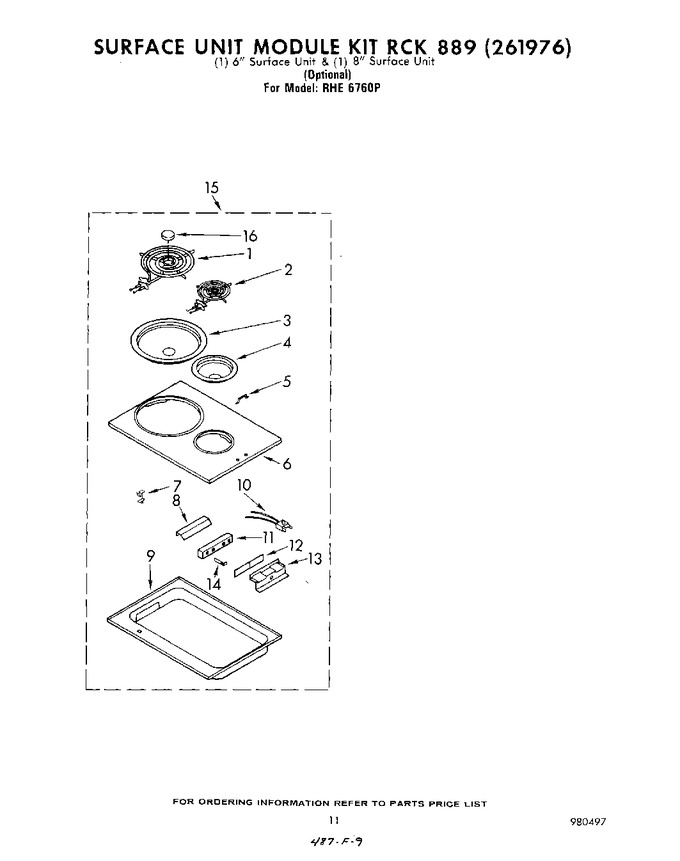

08 - Surface Unit Rck 889 (261976)


09 - Surface Unit Rck 886 (261951)


10 - Grille Rck 882 (261949)


11 - Grille Rck 884 (261950) , Cutting Board


12 - Rotisserie Rck 880 (261947) , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP660533		Unit, Surface (8``) (1)   (Replaces: 868449)			Immediately	$ 40.21
2	WP660532		Unit, Surface (6``) (1)   (Replaces: 868445)			Immediately	$ 45.10
3	WPW10196405		Bowl, Surface Unit (8``) (1)   (Replaces: 868447)			Immediately	$ 15.56
4	868444		Bowl, Surface Unit (6``) (1)		Appelez-nous	-
5	868866		Handle, Cooktop		Appelez-nous	-
5	WP486754		Screw, 6-32 X 3/16   (Replaces: 680406)				$ 7.21
6	868865		Cooktop (6``/8``)		Appelez-nous	-
6	WP486754		Screw, 6-32 X 5/16 (2)   (Replaces: 680406)				$ 7.21
7	868466		Clamp, Wire (2)		Appelez-nous	-
8	868686		Shield, Wire		Appelez-nous	-
9	868813		Pan, Surface Unit		Appelez-nous	-
10	330031		Receptacle & Wire Assembly   (Replaces: 868464)			Immediately	$ 17.93
11	868437		Receptacle, Male		Appelez-nous	-
11	WP486754		Screw, 6-32 X 5/16 (2)   (Replaces: 680406)				$ 7.21
11	486525		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
12	868814		Insulator, Receptacle		Appelez-nous	-
13	866272		Pushnut, 1/8		Appelez-nous	-
13	868440		Bracket, Ground		Appelez-nous	-
13	WP486754		Screw, 6-32 X 3/16 (3)   (Replaces: 680406)				$ 7.21
14	868438		Terminal, Male (4)		Appelez-nous	-
15	261976		Kit, Surface Unit Module (6``/8``)		Appelez-nous	-
16	868522		Medallion (for 8`` & 6`` Surface Unit)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
