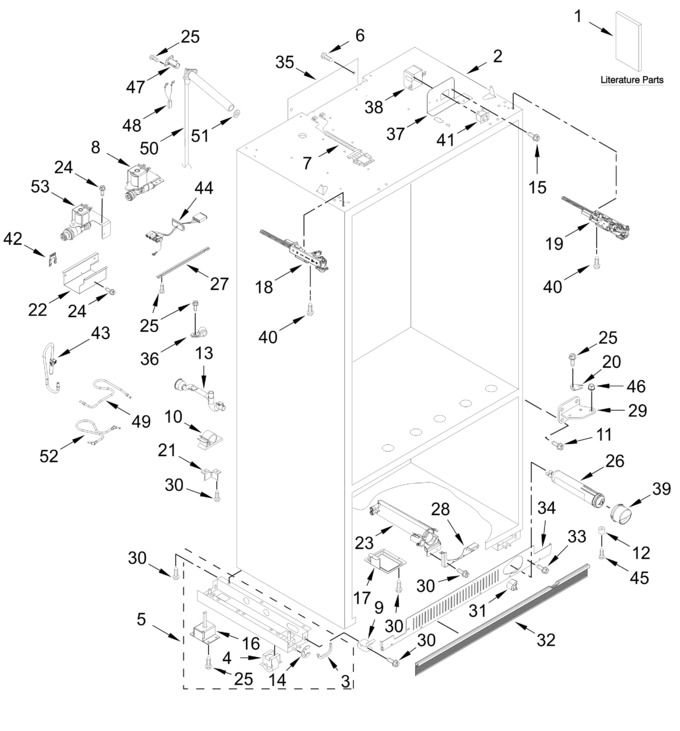

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	ARIF06CCFE9BD0F0FDB975806FEDA58D816		Cabinet (not Serviced)		Appelez-nous	-
3	2307584		Grommet, Crossover Tube				$ 21.06
4	WPW10138054		Roller Assembly   (Replaces: W10138054)				$ 40.81
5	W10860229		Base Assembly, Support (fc, Left Hand)   (Replaces: W10279275)				$ 343.65
6	WP1163283		Screw   (Replaces: 1163283)				$ 6.80
7	W10745694		Wire Assembly, Top Switch Jumper				$ 113.04
8	W11246413		Valve, Isolation (no Flow Washer)   (Replaces: W10578757)			Immediately	$ 178.99
9	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 38.93
10	W10663352		Clip				$ 19.72
11	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
12	2005433		Spacer, Door Skin (top)				$ 21.00
13	W11291510		Tube Assembly, Drain				$ 69.27
14	2006841		Ring, Retainer				$ 83.39
15	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.68
16	2005032		Leveler, Adjustable			Immediately	$ 180.06
17	2318189		Tray, Filter Drip				$ 133.86
18	W11777467		Hinge Assembly, Top (left Hand)   (Replaces: W11767806)		Appelez-nous	-
19	W11777468		Hinge Assembly, Top (right Hand)   (Replaces: W11767807)				$ 359.39
20	WP2004994		Lock, Bushing   (Replaces: 2004994)			Immediately	$ 7.55
21	2006617		Bracket, Base Support (rear)		Appelez-nous	-
22	W10619291		Shield, Valve Electrical		Appelez-nous	-
23	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 243.77
24	WPW10141604		Screw   (Replaces: 487871)				$ 7.97
25	W11624204		Screw   (Replaces: 486194)				$ 13.25
26	EDR3RXD1B		Filter, Water   (Replaces: W10121146)			Immediately	$ 49.99
27	2320559		Support, Valve				$ 79.91
28	W11755873		Bracket, Filter   (Replaces: W11695780)				$ 72.30
29	W10337505		Hinge, Door (center)			Immediately	$ 127.19
30	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.54
31	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 68.78
32	WPW10188549		Skirt, Grille (black)   (Replaces: W10188549)				$ 129.78
33	WP489464		Screw   (Replaces: W10005050)			Immediately	$ 7.54
34	W11739146		Grille, Bottom   (Replaces: W11695786)				$ 191.39
35	2215612		Cover, Air Duct		Appelez-nous	-
36	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 20.16
37	W11788120		Bracket, Rocker Switch (left Hand)   (Replaces: W11780481)		Appelez-nous	-
38	W11756944		Cover, Switch   (Replaces: W11695310)		Appelez-nous	-
39	W11238395		Cap, Water Filter (black)   (Replaces: W10797527)			Immediately	$ 45.61
40	W11777487		Screw   (Replaces: W11757187)				$ 26.87
41	W11291138		Switch, Rocker   (Replaces: W10847852)			Immediately	$ 33.00
42	W10782424		Locking Ring(5/16")		Appelez-nous	-
43	W11690636		Waterline, Cust Connect   (Replaces: W10577944)				$ 117.49
44	W11479397		Wire Assembly, Water Valve				$ 70.87
45	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 4.56
46	2314023		Bushing, Hinge				$ 43.80
47	WP2221240		Heater, Fill Tube   (Replaces: 2221240)				$ 185.92
48	W10482373		Wire Assembly, Fill Tube Heater				$ 112.59
49	W10619899		Tube, Filter Inlet				$ 41.62
50	2317847		Tube Assembly, Water Inlet				$ 77.72
51	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 9.39
52	W10635851		Tube, Filter Outlet				$ 79.71
53	W11225845		Valve, Solenoid   (Replaces: W10574769)			Immediately	$ 178.99
	W11511885		Tech Sheet		Appelez-nous	-
	W10860448		Base Assembly, Support (rc, Right Hand)   (Replaces: W10138423)			Immediately	$ 344.70
	W11511887		Wiring Diagram		Appelez-nous	-
	W10782423		Locking Ring (1/4")				$ 21.93
	W11776012		Installation Instructions		Appelez-nous	-
	W11767767		Owners Manual		Appelez-nous	-
	W11762986		Energy Guide		Appelez-nous	-
	W11788118		Bracket, Rocker Switch (right Hand)   (Replaces: W11780475)		Appelez-nous	-
