Cabinet Parts


Cabinet Trim Parts


Freezer Door And Basket Parts


Freezer Liner And Icemaker Parts


Lower Unit And Tube Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Top Grille And Unit Cover Parts


Upper Unit Parts

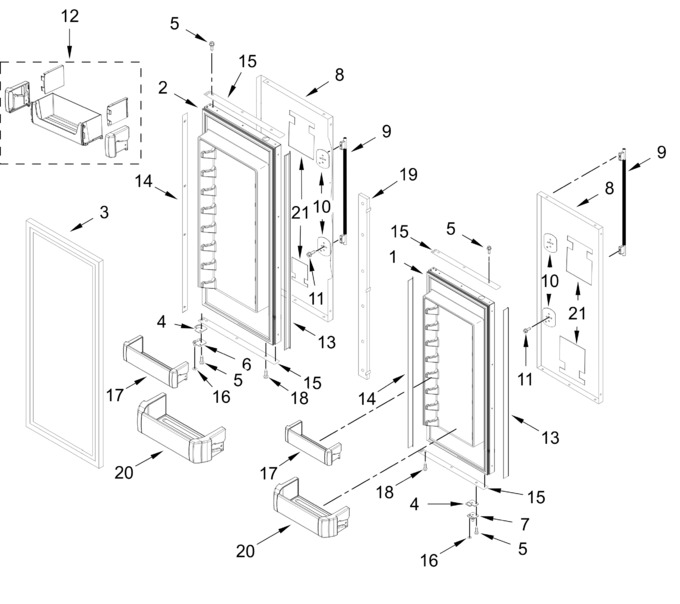

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11827080		Left Door Assembly (includes Door Gasket)   (Replaces: W10796466)				$ 758.55
2	W11779693		Right Door Assembly (includes Door Gasket)		Appelez-nous	-
3	W10600741		Gasket, Door (grey)				$ 228.32
4	W11673500		Spacer, Door Hinge (bottom)   (Replaces: 2316804)			Immediately	$ 130.37
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	W10273369		Hinge Assembly, Bottom (left Hand)				$ 41.21
7	W10273367		Hinge Assembly, Bottom (right Hand)				$ 41.27
8	W11818990		Skin, Rc Door (juniper)   (Replaces: W11744475)		Appelez-nous	-
9	W11798412		Handle Assembly   (Replaces: W11737005)		Appelez-nous	-
10	W10127710		Plate, Handle Door			Immediately	$ 25.94
11	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
12	W11610621		Bin, Top Door		Appelez-nous	-
13	W10600736		Spacer, Door Edge (handle Side)				$ 303.66
14	W10600734		Spacer, Door Edge (hinge Side)				$ 297.16
15	W10600732		Spacer, Door (top/ Bottom)				$ 168.98
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
17	W10529548		Bin, Door (shallow)				$ 290.81
18	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
19	W11812028		Mullion Assembly   (Replaces: W11590864)			Immediately	$ 243.86
20	W10529544		Bin, Door (gallon)				$ 316.01
