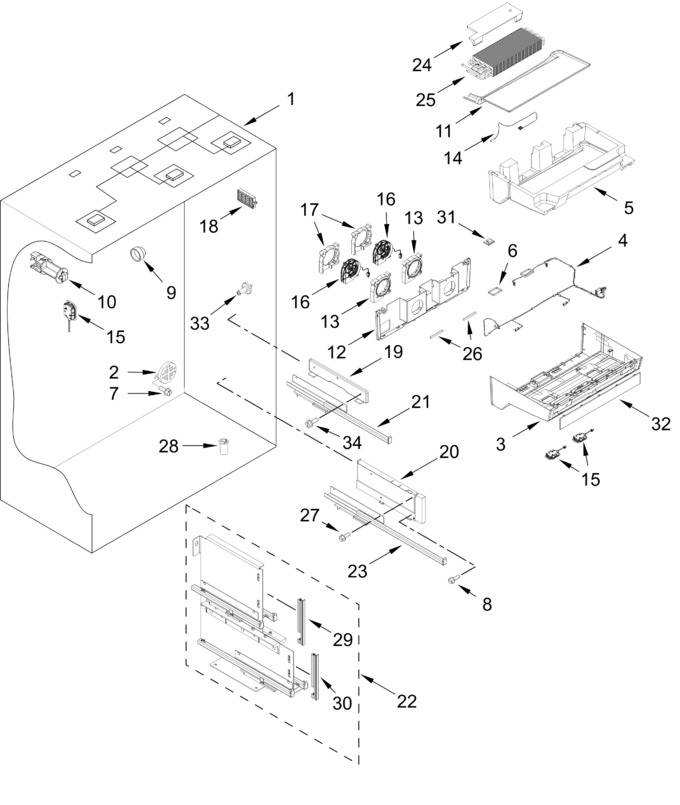

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10600588 | Cover, Air Return |
|
- | |||||
| 3 | W10555476 | Cover, Evaporator |
|
Immediately | $ 240.26 | ||||
| 4 | W11661567 | Wire Assembly, Evaporator (includes Evaporator Thermistor) (Replaces: W10565852) |
|
Immediately | $ 105.41 | ||||
| 5 | W11712700 | Insulation, Evaporator (lower) (Replaces: W10555478) |
|
Immediately | $ 95.57 | ||||
| 6 | W10638137 | Gasket, Evaporator Outlet |
|
$ 47.10 | |||||
| 7 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 8 | W10215666 | Screw |
|
$ 9.53 | |||||
| 9 | W10699426 | Support, Evaporator Assembly |
|
- | |||||
| 10 | W10555493 | Clip, Evaporator Mounting |
|
$ 22.26 | |||||
| 11 | W10555480 | Shield, Evaporator Heat |
|
Immediately | $ 168.39 | ||||
| 12 | W10555484 | Cover, Evaporator (rear) |
|
$ 202.57 | |||||
| 13 | W10538315 | Housing, Fan (front) |
|
$ 86.52 | |||||
| 14 | W11661569 | Thermistor (Replaces: W10667607) |
|
Immediately | $ 107.35 | ||||
| 15 | W11484836 | Light Module, Led (Replaces: W11229041) |
|
Immediately | $ 27.01 | ||||
| 16 | W11678257 | Fan, Icebox (Replaces: W10704104) |
|
$ 318.55 | |||||
| 17 | W10538317 | Housing, Fan (rear) |
|
$ 85.95 | |||||
| 18 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 19 | W10569850 | Spacer, Crisper |
|
- | |||||
| 20 | W10569847 | Spacer, Deli (left Hand) |
|
- | |||||
| 21 | W10569887 | Slide, Crisper Pan (left Hand) |
|
$ 251.62 | |||||
| 22 | W10585157 | Support Assembly, Center |
|
- | |||||
| 23 | W10569892 | Slide, Deli Pan (left Hand) |
|
$ 247.09 | |||||
| 24 | W10555472 | Insulation, Evaporator (upper) |
|
$ 42.69 | |||||
| 25 | W11649687 | Evaporator Assembly, Rc (Replaces: W11267081) |
|
Immediately | $ 321.76 | ||||
| 26 | W10740077 | Gasket, Evaporator Housing (rear) |
|
$ 28.81 | |||||
| 27 | W11830745 | Screw (Replaces: 8533929) |
|
- | |||||
| 28 | WP2210509 | Body, Valve Tube (Replaces: 2171931) |
|
$ 99.15 | |||||
| 29 | W10628280 | Trim, Center Support (grey, Deli) |
|
- | |||||
| 30 | W10604673 | Trim, Center Support (grey, Crisper) |
|
- | |||||
| 31 | W10741189 | Clip, Wiring |
|
- | |||||
| 32 | W11411871 | User Interface Assembly (Replaces: W10776331) |
|
Immediately | $ 388.04 | ||||
| 33 | W10789219 | Stud Assembly, Shelf (gray, Includes Screw) |
|
$ 25.43 | |||||
| 34 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| W10569844 | Spacer, Deli (right Hand) |
|
- | ||||||
| W10569886 | Slide, Crisper Pan (right Hand) |
|
Immediately | $ 251.62 | |||||
| W10569891 | Slide, Deli Pan (right Hand) |
|
$ 247.09 |
