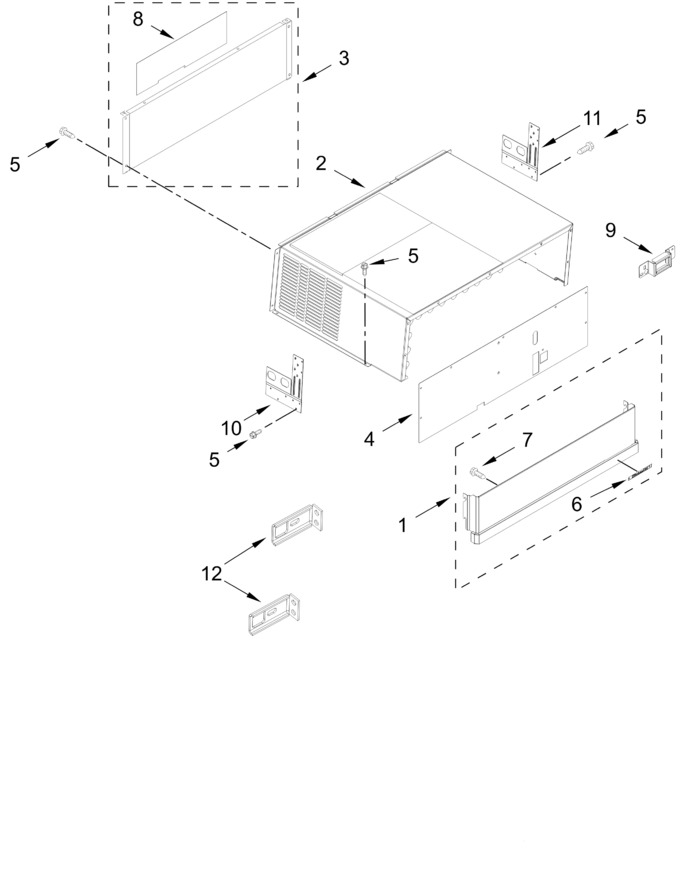

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11777490		Grille Assembly, Top   (Replaces: W11756779)		Appelez-nous	-
2	W11735285		Cover, Upper Unit   (Replaces: W11708444)			Immediately	$ 205.97
3	W11729400		Panel, Unit Back   (Replaces: W11708420)		Appelez-nous	-
4	W11435372		Cover, Unit Front			Immediately	$ 47.65
5	W11233072		Screw   (Replaces: W11546547)			Immediately	$ 14.72
6	W11759445		Badge (smoked Chrome)   (Replaces: W11688412)			Immediately	$ 50.32
7	WP489399		Screw   (Replaces: 489399)				$ 7.30
8	W11244166		Insulation, Unit Back Panel				$ 78.99
9	W11356980		Cover, Safety Switch		Appelez-nous	-
10	W11777557		Bracket, Install (left)   (Replaces: W11756499)		Appelez-nous	-
11	W11777558		Bracket, Install (right)   (Replaces: W11756500)				$ 135.29
12	W11777559		Bracket, Install (bottom)   (Replaces: W11767018)		Appelez-nous	-
