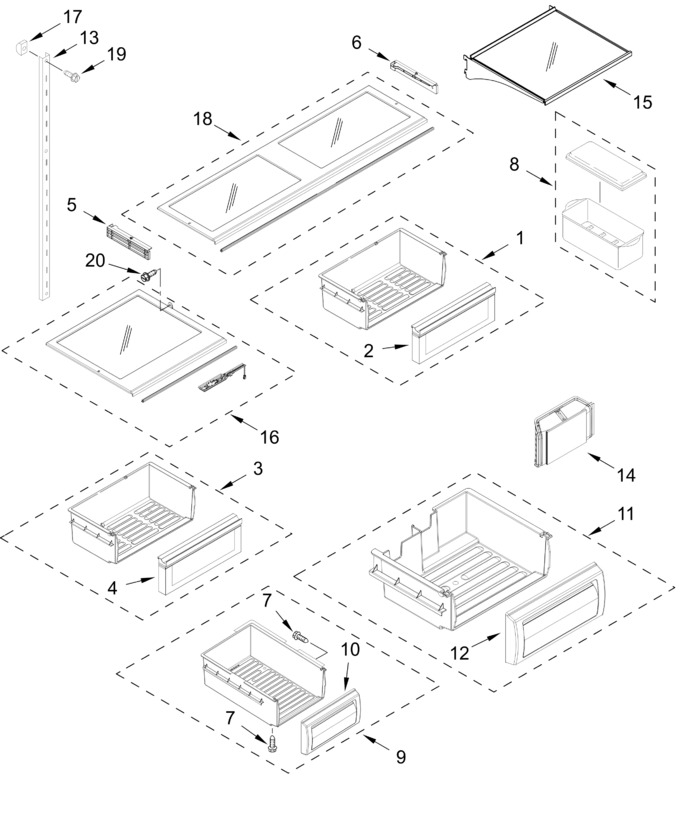

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10529578		Pan Assembly, Crisper				$ 424.39
2	W10529563		Front Assembly, Crisper Pan		Appelez-nous	-
3	W10529585		Pan Assembly, Deli				$ 379.64
4	W10529567		Front Assembly, Deli Pan		Appelez-nous	-
5	W10569854		Support, Crisper Cover (grey, Left Hand)				$ 84.14
6	W10569853		Support, Cripser Cover (grey, Right Hand)		Appelez-nous	-
7	WP488787		Screw   (Replaces: 488886)				$ 11.26
8	WP2221071A		Egg Bin Assembly   (Replaces: 2221071)				$ 25.79
9	W10600690		Pan Assembly, Ice		Appelez-nous	-
10	W10600687		Front Assembly, Ice Pan		Appelez-nous	-
11	W10600700		Pan Assembly, Freezer		Appelez-nous	-
12	W10600696		Front Assembly, Freezer Pan				$ 82.90
13	W10633565		Ladder, Shelf (grey)		Appelez-nous	-
14	W11462816		Produce Preserver   (Replaces: W10826105)			Immediately	$ 17.15
15	WPW10568583		Shelf Assembly, Fixed   (Replaces: W10568583)				$ 407.75
16	WPW10570403		Cover, Deli Bin (left Hand)   (Replaces: W10570403)				$ 280.29
17	520965		Support, Ladder				$ 31.35
18	WPW10578274		Cover, Crisper   (Replaces: W10578274)				$ 301.57
19	W10808291		Screw		Appelez-nous	-
20	8533950		Screw (meteorite)		Appelez-nous	-
	WPW10570404		Cover, Deli Bin (right Hand)   (Replaces: W10570404)				$ 297.59
	W10633566		Ladder, Shelf (grey)		Appelez-nous	-
