Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI589064634E2979140E037AC863CDA0FD Breaker, Trim (not Serviced) Appelez-nous -
2 W11777488 Trim, Cabinet Left Side (juniper, Includes Blind Threaded Insert)   (Replaces: W11737922) Appelez-nous -
3 W11777489 Trim, Cabinet Right Side (juniper, Includes Blind Threaded Insert)   (Replaces: W11737920) Appelez-nous -
4 W10672300 Block, Pivot (top) Special Order $ 68.82

5 W10672302 Block, Pivot (bottom) Special Order $ 68.92

6 2314017 Trim, Cabinet Top (aluminum) Special Order $ 112.14

7 2309230 Contact, Mullion (top) Special Order $ 14.55

8 2309231 Contact, Mullion (bottom) Special Order $ 48.88

9 W10708610 Cover, Hinge Special Order $ 106.02

10 WPW10141645 Screw   (Replaces: W10141645) Special Order $ 7.25

11 W11624204 Screw   (Replaces: 486194) Special Order $ 13.25


    View Diagram in Separate Window     Print Icon   Print Part List

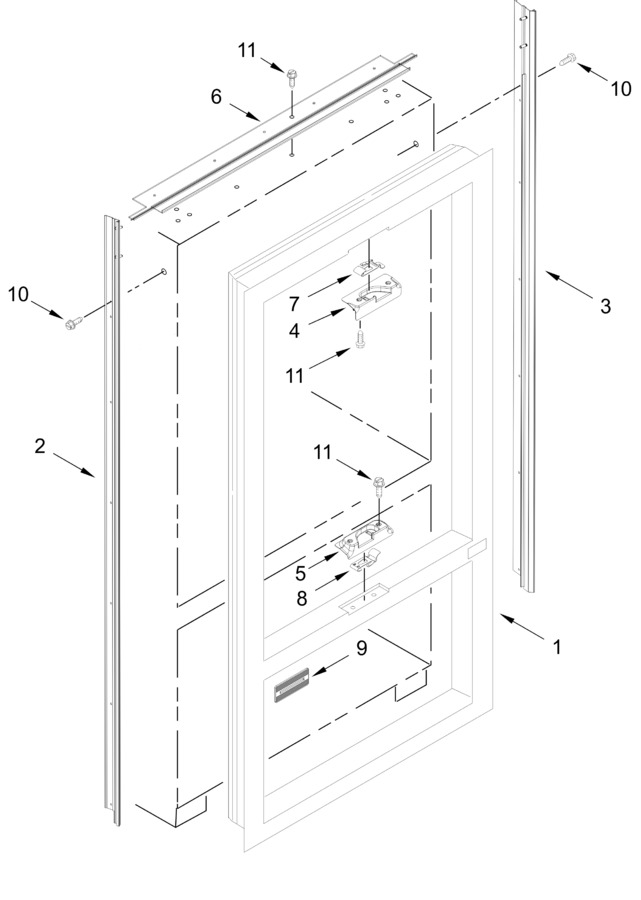

Diagram for KBFN542SJP00
