Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4163809 Thermostat Disc Single Oven Appelez-nous -
6 4163800 Selector Disc Single Oven Appelez-nous -
8 4168838 Nut, Tinnerman Appelez-nous -
8 4164360 Nut, Washer (4) Appelez-nous -
8 4173071 Clock Appelez-nous -
8 4159470 Screw (4) Appelez-nous -
9 254225 Screw, 8bt X 1/4 Appelez-nous -
9 4173293 Control Mounting Panel Appelez-nous -
20 4168597 Indicator Light (2) Appelez-nous -
21 4163869 Indicator Light (2) Appelez-nous -
24 4167332 Oven Light Switch Appelez-nous -
26 4159465 Screw, (2) Appelez-nous -
26 4163730 Meat Probe Indicator Appelez-nous -
28 3177174 Switch, Selector Appelez-nous -
28 155023 Screw (2) In-Stock Immediately $ 7.91

33 155023 Screw (2) In-Stock Immediately $ 7.91

33 4164361 Thermostat Appelez-nous -
LIT3177123 Installation Instructions Appelez-nous -
LIT884428 List, Repair Parts Appelez-nous -
LIT4177808 Cookbook Appelez-nous -
LIT3177054 Use & Care Guide Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

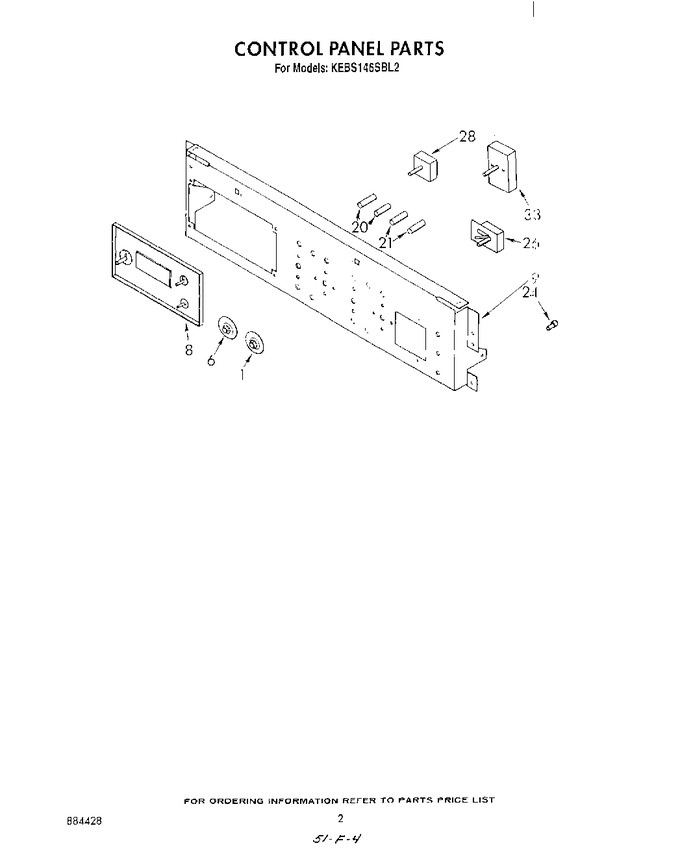

Diagram for KEBS146SBL2
