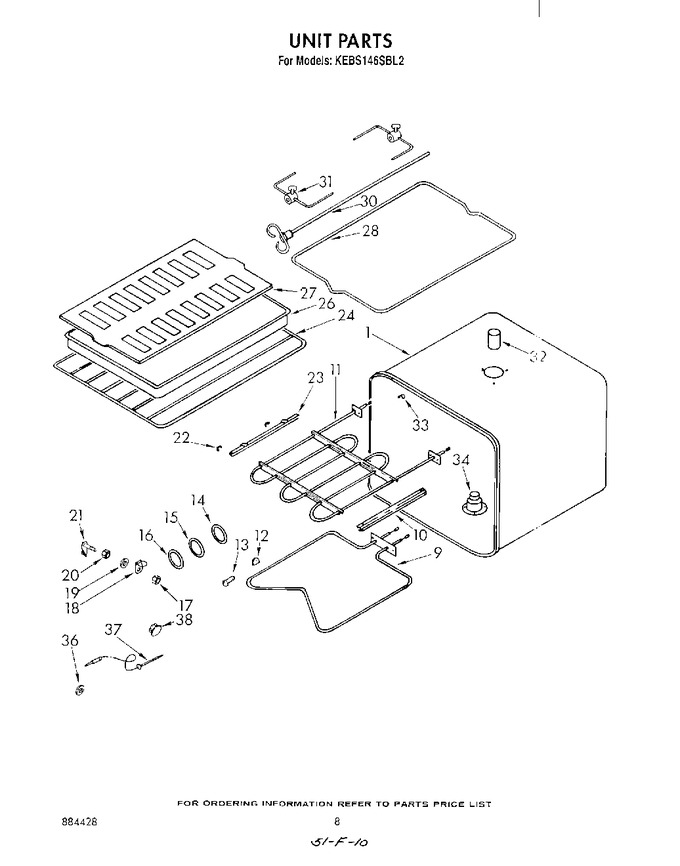

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3178746		Liner, Oven		Appelez-nous	-
9	WP3177420		Element, Bake   (Replaces: 3177420)				$ 137.21
9	4159465		Screw, (2)		Appelez-nous	-
10	4168217		Broiler Element Support-right		Appelez-nous	-
11	4159465		Screw, (2)		Appelez-nous	-
11	4164185		Element, Broil		Appelez-nous	-
12	4167518		Rotisserie Cover		Appelez-nous	-
13	4168874		Shoulder Screw		Appelez-nous	-
14	4166868		Light Lens Gasket		Appelez-nous	-
15	4166866		Light Lens		Appelez-nous	-
16	4169445		Screw (3)		Appelez-nous	-
16	4167938		Light Lens Retainer		Appelez-nous	-
17	4167277		Nut, Meat Probe		Appelez-nous	-
18	4167266		Probe, Jack Cover		Appelez-nous	-
19	4163438		Washer		Appelez-nous	-
19	4163975		Gasket		Appelez-nous	-
20	4173084		Nut, Hex Jam		Appelez-nous	-
21	4164293		Meat Probe Jack		Appelez-nous	-
22	4173275		Clip, Thermostat Bulb		Appelez-nous	-
23	4168218		Broiler Element Support-left		Appelez-nous	-
23	4159465		Screw (4)		Appelez-nous	-
24	4168400		Rack, Oven		Appelez-nous	-
26	4396923		Broiler Pan   (Replaces: 4164250)			Immediately	$ 54.64
27	4396923		Broiler Pan Grid   (Replaces: 4164251)			Immediately	$ 54.64
28	4168411		Rotisserie Rack		Appelez-nous	-
30	4168724		Rotisserie Spear		Appelez-nous	-
31	4166352		Rotisserie Skewer		Appelez-nous	-
32	4159465		Screw (3)		Appelez-nous	-
32	4168126		Vent Tube		Appelez-nous	-
33	4168203		Capillary Cover		Appelez-nous	-
33	4159445		Screw		Appelez-nous	-
34	4168492		Smoke Eliminator		Appelez-nous	-
36	4163975		Gasket, Meat Probe Jack		Appelez-nous	-
37	4167267		Meat Probe		Appelez-nous	-
38	4159122		Plug Button (5/8`` Hole)		Appelez-nous	-
