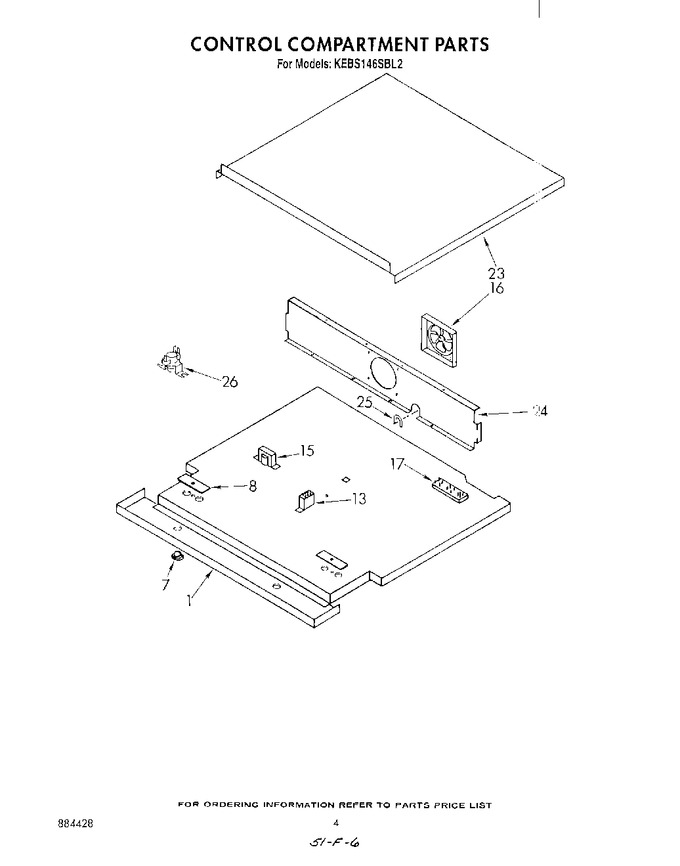

04 - Control Compartment


05 - Oven Door


06 - Latch


07 - Unit


08 - Cabinet


09 - Wire Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4173011		Sandwich Panel		Appelez-nous	-
7	4173043		Bushing (2)		Appelez-nous	-
8	4168527		Hole Cover (2)		Appelez-nous	-
8	4159465		Screw, (2)		Appelez-nous	-
13	4163731		Relay, Meat Probe		Appelez-nous	-
15	4170330		Wire Clamp		Appelez-nous	-
15	4159465		Screw (4) Model Kebs145sbl1		Appelez-nous	-
15	4166561		Transformer, Meat Probe		Appelez-nous	-
16	4173004		Blower		Appelez-nous	-
17	4168800		Wire Assembly 10 Ga. 70``		Appelez-nous	-
17	4168801		Wire Assembly 10 Ga. 70``		Appelez-nous	-
17	4168783		Wire, Bare 10 Ga. 65``		Appelez-nous	-
17	4168802		Wire Assembly 10 Ga. 70``		Appelez-nous	-
17	4168735		Terminal Block, Power Supply		Appelez-nous	-
23	4159465		Screw (7)		Appelez-nous	-
23	4173290		Cabinet Top		Appelez-nous	-
24	4173005		Panel, Blower Mounting		Appelez-nous	-
25	4159461		Screw		Appelez-nous	-
25	4173165		Bushing, Flexible		Appelez-nous	-
26	4159465		Screw, (2)		Appelez-nous	-
26	4173008		Switch, Fan		Appelez-nous	-
