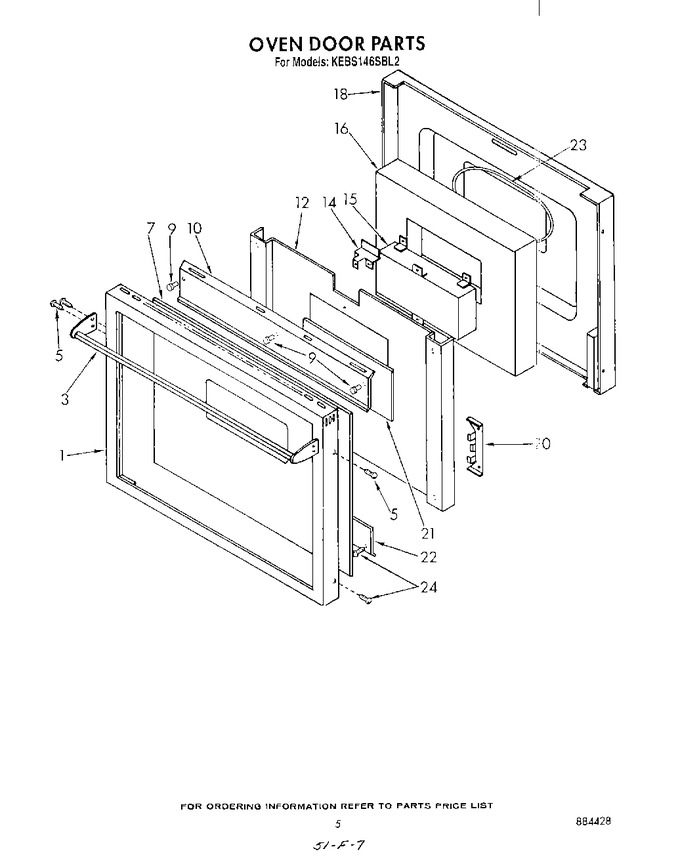

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4168863		Screw, (4)		Appelez-nous	-
1	4169519		Door Frame		Appelez-nous	-
3	4169520		Door Handle		Appelez-nous	-
5	4159330		Screw, No.8-32 X 3/8`` Pfhms		Appelez-nous	-
7	4164240		Door Glass		Appelez-nous	-
9	4168826		Rubber Bumper		Appelez-nous	-
10	4163856		Air Baffle		Appelez-nous	-
12	4159465		Screw (4)		Appelez-nous	-
12	4169356		Insulation Retainer		Appelez-nous	-
14	4163852		Bracket, Lock		Appelez-nous	-
15	4164235		Window Package		Appelez-nous	-
15	4159465		Screw (4)		Appelez-nous	-
16	4163986		Insulation		Appelez-nous	-
18	3178760		Liner, Door		Appelez-nous	-
20	4159465		Screw (4)		Appelez-nous	-
20	4163855		Glass Mounting Bracket		Appelez-nous	-
21	4164243		Glass Panel		Appelez-nous	-
22	4163858		Air Baffle Bottom		Appelez-nous	-
23	3178584		Gasket, Window		Appelez-nous	-
24	4168863		Screw, 8a X 3/8`` Pkesms		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
