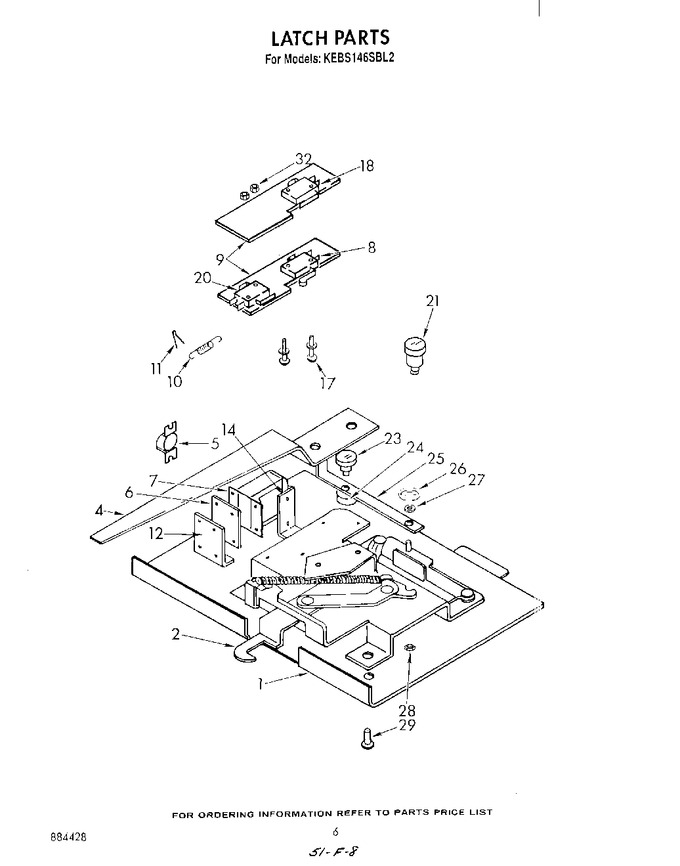

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4168063		Latch Mounting Plate		Appelez-nous	-
2	4168538		Mechanism, Latch		Appelez-nous	-
4	4168579		Screw, Shoulder (2)		Appelez-nous	-
4	3177965		Latch Lever		Appelez-nous	-
5	4159445		Screw, (2)		Appelez-nous	-
5	3178555		Insulator Sleeve		Appelez-nous	-
5	4173007		Thermal Switch		Appelez-nous	-
5	4173170		Bracket		Appelez-nous	-
6	4168169		Solenoid Spacer		Appelez-nous	-
7	4159470		Screw (2)		Appelez-nous	-
7	4169323		Solenoid		Appelez-nous	-
8	4168514		Latch Switch With Roller		Appelez-nous	-
9	4168522		Insulator (2)		Appelez-nous	-
10	4168560		Solenoid Spring		Appelez-nous	-
11	4159129		Cotter Pin		Appelez-nous	-
12	4159167		Screw (2)		Appelez-nous	-
12	4168292		Bracket, Mounting		Appelez-nous	-
14	4173168		Bracket, Harness		Appelez-nous	-
17	4173053		Screw (2)		Appelez-nous	-
18	4159117		Nut Flexlock (2)		Appelez-nous	-
18	4173053		Screw 4-40 X 1.250		Appelez-nous	-
18	4164366		Latch Switch		Appelez-nous	-
20	4168517		Latch Switch Spdt		Appelez-nous	-
20	4159117		Nut Flexlock (2)		Appelez-nous	-
20	4173053		Screw 4-40 X 1.250		Appelez-nous	-
21	4168579		Shoulder Screw, Latch Lever		Appelez-nous	-
23	4168554		Shoulder Screw, Actuator Arm		Appelez-nous	-
24	4168553		Spacer, Actuator Arm		Appelez-nous	-
25	4168058		Actuator Arm		Appelez-nous	-
26	4159160		Retaining Ring		Appelez-nous	-
27	4159603		Washer, Flat		Appelez-nous	-
28	4159109		Nut, No.10-24 Hex Kep (4)		Appelez-nous	-
29	4159287		Screw, No.10-24 X 3/8`` Pthms		Appelez-nous	-
32	4159117		Nut, Lock		Appelez-nous	-
