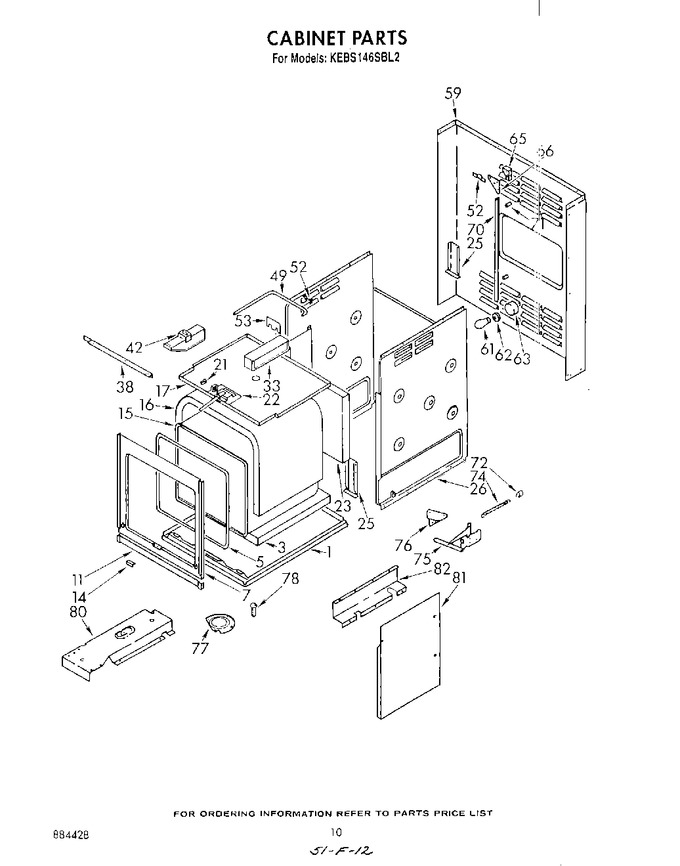

02 - Control Panel , Lit/optional
03 - Control Frame And Knob
04 - Control Compartment
05 - Oven Door
06 - Latch
07 - Unit
08 - Cabinet
09 - Wire Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4159465 | Screw (4) |
|
- | |||||
| 1 | 4163967 | Main Bottom |
|
- | |||||
| 3 | 4169309 | Insulation, Bottom |
|
- | |||||
| 5 | 3178581 | Door Gasket |
|
- | |||||
| 7 | 4163824 | Front Frame |
|
- | |||||
| 11 | 3177549 | Retainer-gasket |
|
- | |||||
| 11 | 4168863 | Screw, Knife Edge |
|
- | |||||
| 11 | 3178732 | Bottom Trim |
|
- | |||||
| 14 | 4167588 | Cover, Seal End |
|
- | |||||
| 16 | 4169310 | Insulation, Top And Sides |
|
- | |||||
| 17 | 4169315 | Top Compartment |
|
- | |||||
| 17 | 4159465 | Screw (11) |
|
- | |||||
| 21 | 4163821 | Knob, Latch Lever |
|
- | |||||
| 21 | 4159201 | Screw |
|
- | |||||
| 23 | 4169311 | Insulation, Rear |
|
- | |||||
| 25 | 4159465 | Screw (4) |
|
- | |||||
| 25 | 4167526 | Rear Anchor |
|
- | |||||
| 26 | 4173047 | Cabinet Side |
|
- | |||||
| 26 | 4159465 | Screw (14) |
|
- | |||||
| 33 | 4159465 | Screw, (2) |
|
- | |||||
| 33 | 4168681 | Collector Box |
|
- | |||||
| 38 | 4169335 | Control Frame |
|
- | |||||
| 38 | 4159470 | Screw Support |
|
- | |||||
| 42 | 4159465 | Screw, (2) |
|
- | |||||
| 42 | 4163941 | Vent Box |
|
- | |||||
| 49 | 4168494 | Vent Tube |
|
- | |||||
| 52 | 4167593 | Clamp, Conduit |
|
- | |||||
| 52 | 4159465 | Screw |
|
- | |||||
| 53 | 4168242 | Vent Tube Mounting Bracket |
|
- | |||||
| 53 | 4159465 | Screw, (2) |
|
- | |||||
| 59 | 4159465 | Screw, (2) |
|
- | |||||
| 59 | 4173064 | Cabinet, Back |
|
- | |||||
| 61 | 316538904 | Bulb, 40 Watt (Replaces: 4173062) |
|
Immediately | $ 20.48 | ||||
| 62 | 4168755 | Socket, Lamp |
|
- | |||||
| 63 | 4167579 | Light Shield |
|
- | |||||
| 63 | 4159465 | Screw (3) |
|
- | |||||
| 65 | 4163836 | Rotisserie Motor |
|
- | |||||
| 66 | 4159501 | Washer, Lock (4) |
|
- | |||||
| 66 | 4167469 | Rotisserie Motor |
|
- | |||||
| 66 | WP488234 | Screw (4) (Replaces: 4159334) |
|
$ 6.37 | |||||
| 66 | 4159465 | Screw (4) Mounting Plate |
|
- | |||||
| 70 | 4163759 | Cabinet Support (right) |
|
- | |||||
| 70 | 4163760 | Cabinet Support (left) |
|
- | |||||
| 70 | W11233072 | Cabinet Support (screw (4)) (Replaces: 4159450) |
|
Immediately | $ 13.25 | ||||
| 70 | 4159470 | Cabinet Support (screw (6)) |
|
- | |||||
| 70 | 4168590 | Cabinet Support (spacer (4)) |
|
- | |||||
| 70 | 4159188 | Cabinet Support (screw (4)) |
|
- | |||||
| 72 | 4167599 | Spring, Anchor |
|
- | |||||
| 74 | 4173048 | Door Spring |
|
- | |||||
| 75 | 4167596 | Hinge Assembly |
|
- | |||||
| 75 | 4159188 | Screw (6) |
|
- | |||||
| 76 | 4167597 | Cam Plate (right) |
|
- | |||||
| 76 | 4167598 | Cam Plate (left) |
|
- | |||||
| 76 | 4159188 | Cam Plate (screw (6)) |
|
- | |||||
| 77 | 4163883 | Probe Cover |
|
- | |||||
| 77 | 4159465 | Screw (4) |
|
- | |||||
| 78 | 4168863 | Screw, 8a X 3/8`` Pkesms |
|
- | |||||
| 80 | 4163752 | Air Duct (left) |
|
- | |||||
| 80 | 4163753 | Air Duct (right) |
|
- | |||||
| 81 | 4173017 | Extension, Air (right Hand) |
|
- | |||||
| 81 | 4173016 | Extension, Air (left Hand) |
|
- | |||||
| 81 | 4159465 | Extension, Air (screw (4)) |
|
- | |||||
| 82 | 4159465 | Screw (11) |
|
- | |||||
| 82 | 4173015 | Air Baffle Channel |
|
- |
