SELECT A DIAGRAM

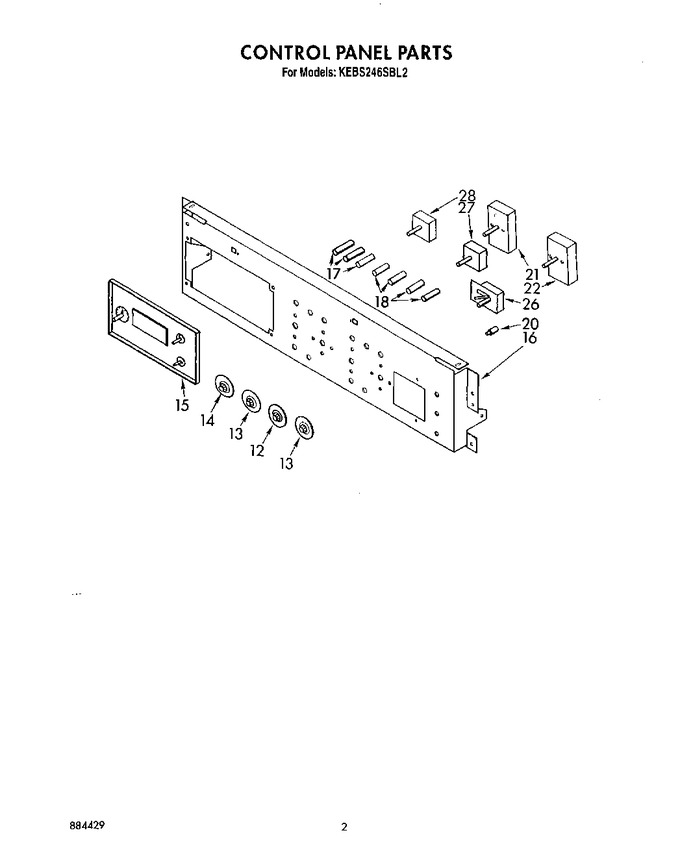

02 - Control Panel


03 - Control Frame


04 - Top Compartment


05 - Oven Door


06 - Latch


07 - Liner , Literature And Optional


08 - Cabinet


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	4163799		Selector Disc Lower Oven		Appelez-nous	-
12	4175379		Nut (2)		Appelez-nous	-
13	3179678		Thermostat Disc (2) Upper Oven		Appelez-nous	-
14	4163800		Selector Disc Upper Oven		Appelez-nous	-
14	4175379		Nut (2)		Appelez-nous	-
15	4173071		Clock		Appelez-nous	-
15	4164360		Nut (4)		Appelez-nous	-
15	4168838		Nut (2)		Appelez-nous	-
15	4159470		Screw (4)		Appelez-nous	-
16	4173293		Plate, Control		Appelez-nous	-
17	4168597		Indicator Light (3) (upper Oven)		Appelez-nous	-
18	4163869		Indicator Light (4)		Appelez-nous	-
20	4167332		Oven Light Switch		Appelez-nous	-
21	4164362		Thermostat, Oven (lower)		Appelez-nous	-
21	155023		Screw (2)			Immediately	$ 7.91
22	4164361		Thermostat, Oven (upper)		Appelez-nous	-
22	155023		Screw (2)			Immediately	$ 7.91
26	4163730		Indicator, Probe		Appelez-nous	-
26	4159465		Screw, (2)		Appelez-nous	-
27	3177173		Selector Switch Lower Oven		Appelez-nous	-
27	155023		Screw (2)			Immediately	$ 7.91
28	3177174		Selector Switch Upper Oven		Appelez-nous	-
28	155023		Screw (2)			Immediately	$ 7.91
28	3178619		Lower Oven		Appelez-nous	-
28	3178620		Upper Oven		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
