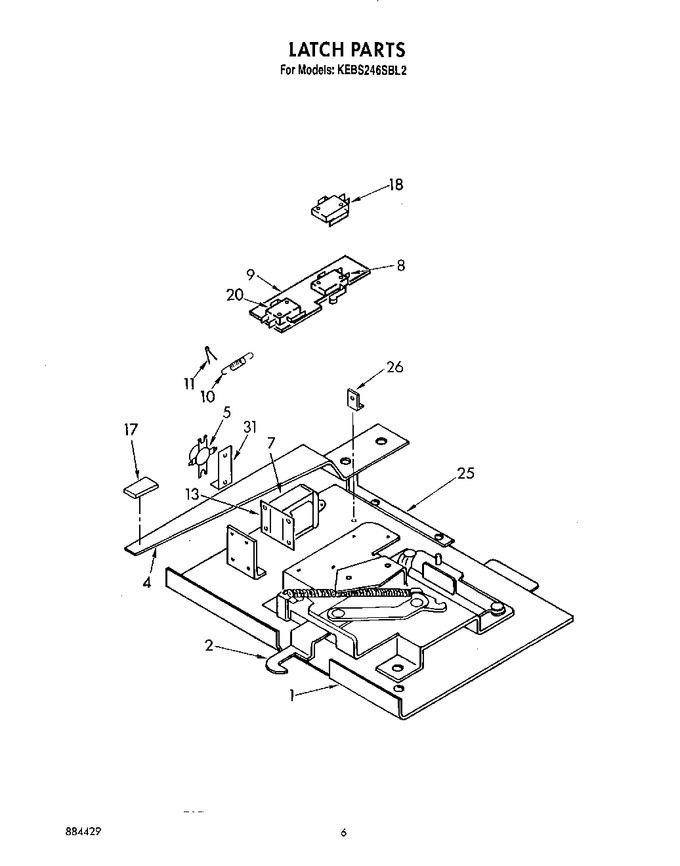

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4178063		Plate, Latch		Appelez-nous	-
1	4159186		Screw (4)		Appelez-nous	-
2	4168538		Mechanism, Latch		Appelez-nous	-
2	4159109		Nut (3)		Appelez-nous	-
2	4159287		Screw (3)		Appelez-nous	-
4	3177966		Lever, Latch		Appelez-nous	-
4	4168579		Screw (2)		Appelez-nous	-
5	4159445		Thermal Switch, Safty (screw (2))		Appelez-nous	-
5	4173007		Thermal Switch, Safty (upper)		Appelez-nous	-
5	3179691		Thermal Switch, Safty (lower)		Appelez-nous	-
7	4169323		Solenoid		Appelez-nous	-
7	4159470		Screw (2)		Appelez-nous	-
8	4168514		Latch Switch With Roller		Appelez-nous	-
9	4168522		Insulator		Appelez-nous	-
10	4168560		Solenoid Spring		Appelez-nous	-
11	4159129		Cotter Pin		Appelez-nous	-
13	4168292		Plate, Solenoid		Appelez-nous	-
17	4159201		Screw		Appelez-nous	-
17	4163821		Knob, Latch		Appelez-nous	-
18	4159117		Nut (2)		Appelez-nous	-
18	4173053		Screw (2)		Appelez-nous	-
18	4164366		Latch Switch		Appelez-nous	-
20	4168517		Latch Switch		Appelez-nous	-
20	4173053		Screw (2)		Appelez-nous	-
20	4159117		Nut (2)		Appelez-nous	-
25	4159603		Washer		Appelez-nous	-
25	4168554		Screw		Appelez-nous	-
25	4159109		Nut		Appelez-nous	-
25	4168058		Actuator Arm		Appelez-nous	-
25	4159160		Ring		Appelez-nous	-
25	4168553		Spacer		Appelez-nous	-
26	4173168		Bracket, Harness		Appelez-nous	-
31	3178615		Harness, Wiring Latch Switch (upper Oven)		Appelez-nous	-
31	4173051		Harness, Wiring Latch Switch (latch Switch (upper Oven))		Appelez-nous	-
31	4173170		Breacket, Switch		Appelez-nous	-
31	3178616		Harness, Wiring Latch Switch (lower Oven)		Appelez-nous	-
